51 16 045 Removing and installing or replacing retaining ring on left or right door mirror

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove Housing On Door Mirror
Remove Drive for electrically adjustable door mirror

Release screws (1) on retaining ring (2).

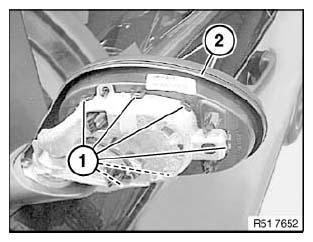

Fig 1: Identifying Screws On Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Starting at bottom, unclip catches (1) all round from retaining ring (2) with special tool 00 9 317.

Remove retaining ring (2).

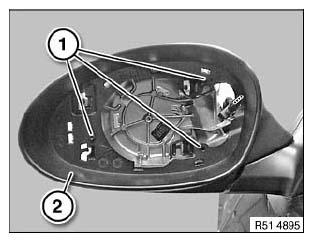

Fig 2: Identifying Catches And Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) must not be damaged.

Locators (2) for multitooth catches must not be damaged.

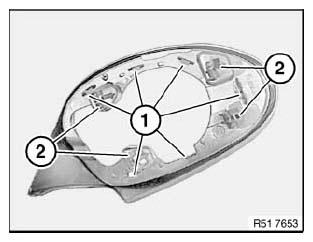

Fig 3: Identifying Catches And Locators

Courtesy of BMW OF NORTH AMERICA, INC.
