51 16 026 Replacing mirror glass

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

WARNING: Move mirror glass with hand carefully and slowly.

If mirror glass is damaged:

Wear protective goggles and cut-proof gloves.

Risk of injury by flaking-off glass splinters.

IMPORTANT: Bring door mirror to room temperature to prevent catches from breaking off.

Press mirror glass (1) on side vehicle by hand to full extent.

NOTE: Secure mirror glass (1) against falling out.

Unclip mirror glass (1) from outer side with special tool 00 9 317 all round.

Unlock and disconnect associated plug connections, remove mirror glass (1).

Fig 1: Identifying Front Door Mirror Glass And Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining lugs (1) must not be damaged.

Fit mirror glass (2) with retaining lugs (1) flush on mirror adjusting drive and clip into place.

Ensure correct locking.

Make sure mirror adjusting drive functions correctly.

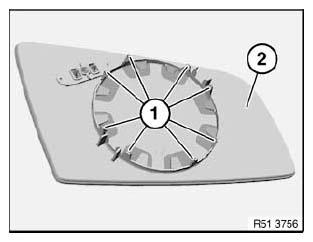

Fig 2: Identifying Retaining Lugs And Mirror Glass

Courtesy of BMW OF NORTH AMERICA, INC.
