51 14 110 Removing and installing/replacing rear model designation
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
The "Instructions For Number/Letter Combination Cementing " serve as the basis for these repair instructions and must be followed without fail.
Fitting dimensions (E90/E91/E92/E93):

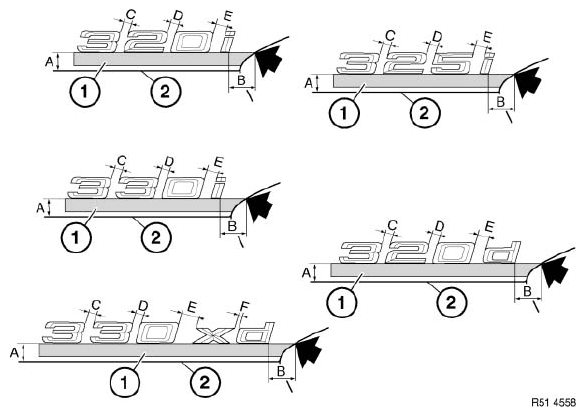

Attach adhesive tape (1) between edge of rear lid (2) and top edge "A". Mark out measurement "B" from top edge "A" to outer edge of rear lid on adhesive tape (1).
Dimensions:
DIMENSION CHART
| E90 | A = 25.2 mm | B = 49.3 mm |
| E91 | A = 26.6 mm | B = 65.1 mm |
| E92 | A = 21 mm | B = 49.6 mm |
| E93 | A = 20 mm | B = 52.7 mm |
|
NOTE:
Measurements C, D and E are for information purposes only, as determined by carrier film.
316 i, 318 i, 318 d: C = 4.8 mm, D = 7.2 mm, E = 11.6 mm 320i...335i: C = 7.2 mm, D = 7.2 mm, E = 11.6 mm 320 d...330 d: C = 7.2 mm, D = 7.2 mm, E = 11.6 mm 320 si, 325 xi, 330 xi, 330 xd: C = 7.2 mm, D = 7.2 mm, E = 10.6 mm, F = 4.8 mm |
||
