51 14 000 Removing and installing/replacing front BMW badge

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Lever out badge with special tool 00 9 318 and remove towards top.

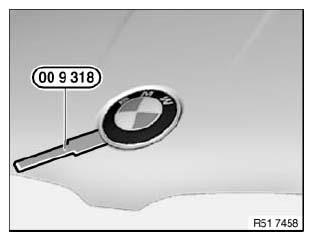

Fig 1: Identifying Special Tool (00 9 318) And BMW Badge
G04728196Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of badge (1) must not be damaged or missing:

2 Guide pins

3 Grommets

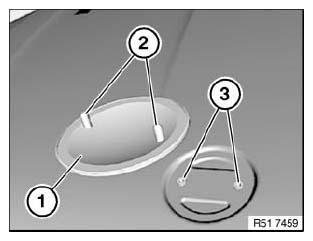

Fig 2: Identifying BMW Badge, Guide Pins And Grommets
G04728197Courtesy of BMW OF NORTH AMERICA, INC.
