51 13 316 Removing and installing/replacing trim strip on roof gutter at left or right

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

IMPORTANT: Make sure that body is not damaged.

Starting at front, release trim strip (1) with special tool 00 9 317 from clips (2).

Installation:

To avoid leaks and noises, check all clips (2) for visible damage.

If necessary, replace faulty clips (2).

Align clips (2) on body and fit trim strip (1).

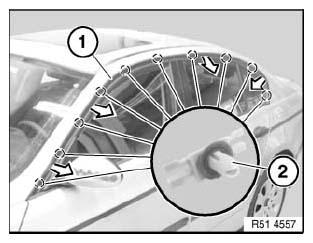

Fig 1: Identifying Roof Gutter Trim Strip And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seals (1) must not be damaged.

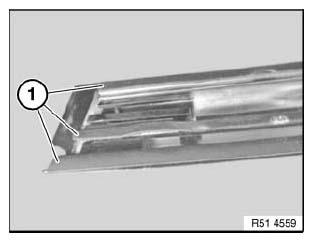

Fig 2: Identifying Roof Gutter Seals

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Carry trim strip by its middle section only (risk of damage)
Perform installation work with a second person helping
Prepositioning of trim strip
Ensure drip moulding runs parallel to side frame (risk o breakage)
