51 13 280 Removing and installing/replacing trim strip on roof frame at left or right

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 321

Necessary preliminary tasks:

E91 only:

If necessary, remove roof rails

Lever out trim strip (1) with special tool 00 9 321 starting at rear.

Unclip trim strip (1) in direction of arrow.

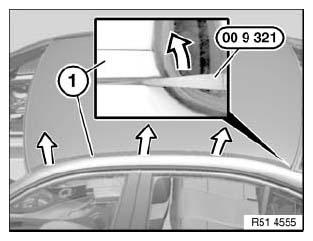

Fig 1: Identifying Special Tool (00 9 321) And Trim Strip

G04728189

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) and seals (2) on trim strip (3) must not be damaged.

If necessary, replace faulty clips (1).

Position of clips (1) on trim strip (3) is determined by notch (4).

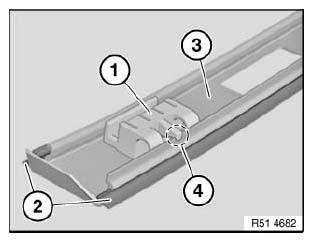

Fig 2: Identifying Roof Frame Trim Strip, Clips, Seals And Notch

G04728190

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Push trim strip (1) at front into seal (2).

Trim strip (1) must be flush with edge (3) at rear.

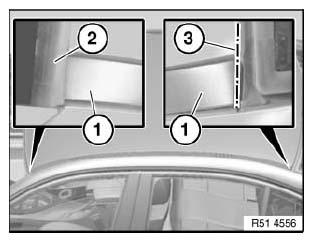

Fig 3: Identifying Roof Frame Trim Strip, Seal And Edge

G04728191

Courtesy of BMW OF NORTH AMERICA, INC.
