51 13 025 Removing and installing/replacing left or right trim on engine hood/bonnet

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1) and remove trim (2) in upwards direction.

For tightening torque refer to 51 13 7AZ in 51 13 TRIM PARTS, COVERS, HANDLE TRIM .

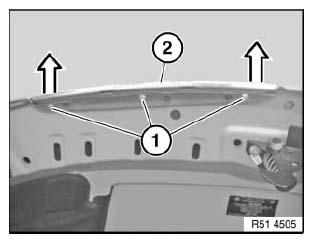

Fig 1: Identifying Engine Hood/Bonnet Trim And Screws
G04728181Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) on trim (2) must not be damaged.

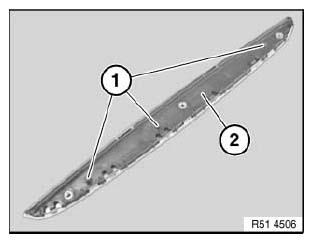

Fig 2: Identifying Guides And Engine Hood/Bonnet Trim
G04728182Courtesy of BMW OF NORTH AMERICA, INC.
