51 12 ... Removing and installing/replacing guide for bumper at rear bottom middle

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1 and 2) and remove guide (3).

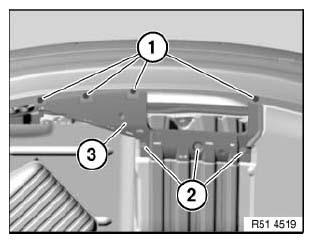

Fig 1: Identifying Guide And Screws
G04728160Courtesy of BMW OF NORTH AMERICA, INC.
