61 35 953 Removing and installing/replacing interior antenna for comfort access system

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Disconnect plug connection (1).

Unlock retaining hook (2) and remove interior antenna for comfort access system (3) in direction of arrow.

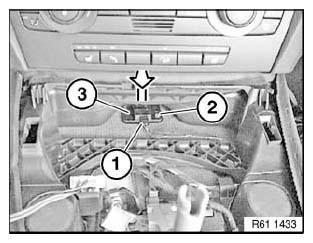

Fig 1: Identifying Comfort Access System Interior Antenna, Plug Connection And Retaining Hook
G04727645Courtesy of BMW OF NORTH AMERICA, INC.
