61 31 192 Replacing knob for controller

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Partially fit special tool 00 9 317 as illustrated.

Lever out knob for controller (1) from controller (2) and remove towards top.

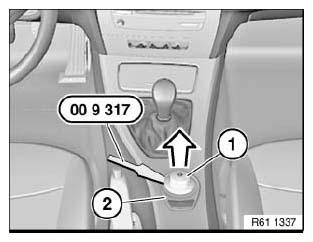

Fig 1: Identifying Special Tool (00 9 317), Controller Knob And Controller

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!

Install knob for controller only when controller is installed.

Installation:

Fit knob for controller (1) so that guides (2) are correctly seated in mountings (3).

Fig 2: Identifying Controller Knob, Guides And Mountings

Courtesy of BMW OF NORTH AMERICA, INC.
