63 99 315 Replacing light bulb(s) for left or right rear light

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow Instructions For Handling Light Bulbs (Exterior Lights) .

Necessary preliminary tasks:

Remove Socket Housing For Rear Light

Rear light in side panel:

Turn faulty bulb and pull out of socket housing for rear light (5).

NOTE:

Bulb, turn indicator light
Bulb, rear light
Bulb, brake light
Bulb, adaptive brake light

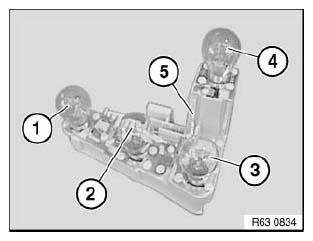

Fig 1: Identifying Rear Light Side Panel Bulbs And Socket Housing
Courtesy of BMW OF NORTH AMERICA, INC.

Rear light in rear lid:

Turn faulty bulb and pull out of socket housing for rear light (4).

NOTE:

Bulb, rear fog light
Bulb, rear light
Bulb, reversing light

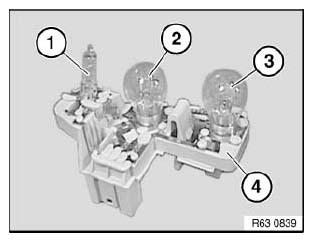

Fig 2: Identifying Rear Light Rear Lid Bulbs And Socket Housing
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Note Bulb Type .
