63 99 132 Replacing bulb for front left (or right) parking light

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow Instructions For Handling Light Bulbs (Exterior Lights) .

NOTE: Headlight removed for purposes of clarity.

Unlock retainer (1) and remove cover (2) in direction of arrow from headlight.

Installation:

Make sure cover (2) is correctly seated on headlight.

Fig 1: Identifying Retainer And Headlight Cover

Courtesy of BMW OF NORTH AMERICA, INC.

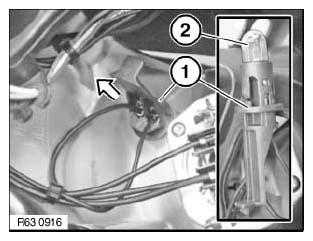

Grip bulb holder (1) on both sides and pull in direction of arrow out of headlight.

Withdraw bulb for side marker lamp (2) in direction of arrow from bulb holder (1).

Installation:

Make sure bulb holder (1) is exactly seated in headlight.
Note Bulb Type .

Fig 2: Identifying Bulb Holder And Marker Lamp
Courtesy of BMW OF NORTH AMERICA, INC.
