63 12 870 Replacing ignition unit for left xenon headlight (with xenon bulb)
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Version with xenon headlights: Danger to life due to high voltage! Therefore, before removing, disconnect all components from the power supply (lighting system and ignition off).
Work on the entire xenon lighting system (control unit, ignition unit with bulb) may only be carried out by specialist personnel.
Follow Instructions For Handling Light Bulbs (Exterior Lights) .
IMPORTANT:
Ignition unit and xenon bulb are viewed as a single component and must not be separated.
Necessary preliminary tasks:
- Remove Front Left Wheel Arch Trim
NOTE:
Headlight removed for purposes of clarity.

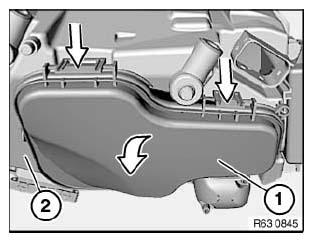

Unlock both retaining tabs and remove cover (1) in direction of arrow from headlight (2).
Installation:
Make sure cover (1) is correctly seated on headlight (2).

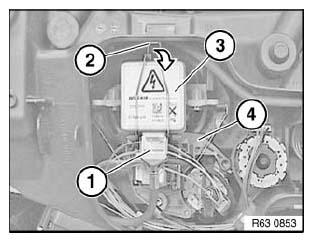

Disconnect plug connection (1).
Unlock spring wire clip (2) and fold downwards.
Remove ignition unit for xenon headlight (3) from headlight (4).
Installation:
Make sure ignition unit (3) is exactly seated in headlight (4).
