64 50 ... Install the retrofit absorber for the air conditioning suction line

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

The retrofit kit may be used for vehicles with a production date from 09/2008.

IMPORTANT: The retrofit kit with part number 6 987 991 may no longer be used

Necessary preliminary work: Remove rear underbody protection

Unscrew nuts (1). Remove the protective plate (2).

NOTE: Figure shows all-wheel drive vehicle

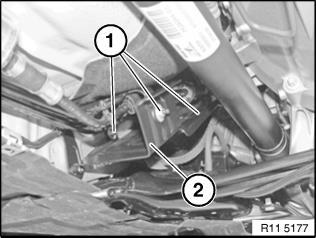

Fig 1: Unscrew Nuts (1) And Remove Protective Plate (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Lay the steel measuring tape (2) onto the intake pipe (1).

IMPORTANT: The steel measuring tape (2) must be flush with the bottom of the rubber ring (3)!

Mark distance A =11 cm.

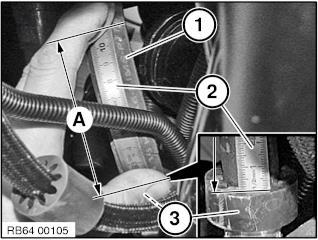

Fig 2: Steel Measuring Tape (2) Must Be Flush With Bottom Of Rubber Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Attach the lower edge of the vibration absorber (1) at the marked position and screw it to the intake pipe (2). Tightening torque: 8 Nm

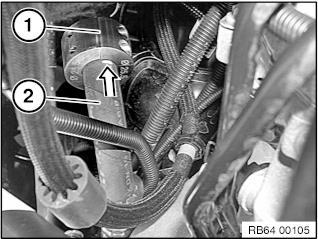

Fig 3: Attach Lower Edge Of Vibration Absorber (1) At Marked Position And Screw It To Intake Pipe

Courtesy of BMW OF NORTH AMERICA, INC.
