65 83 570 Removing and installing/replacing CD drive for Car Communication Computer

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020

IMPORTANT: Read and comply with Notes On Protection Against Electrostatic Damage (ESD Protection) !

Necessary preliminary tasks:

Remove Front Trim For Car Communication Computer

Raise cover (1) with special tool 64 1 020 all round and remove from Car Communication Computer (2).

Fig 1: Identifying Special Tool (64 1 020), Car Communication Computer And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Feed CD drive for Car Communication Computer (2) in direction of arrow out of Car Communication Computer (3) and set down.

Installation:

Ensure correct routing of cables.

Fig 2: Identifying Bolts, Car Communication Computer And CD Drive

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove CD drive trim (2) in direction of arrow from CD drive for Car Communication Computer (3).

Installation:

Ensure correct routing of cables.

Fig 3: Identifying Screws, CD Drive Trim And Car Communication Computer CD Drive

Courtesy of BMW OF NORTH AMERICA, INC.

Cut through warranty seal (1) at marked point.

Release screw (2).

Lift side cover out of mounting (3) and carefully place to one side.

Installation:

Replace warranty seal with supplied seal.

Warranty will be invalidated if seal is damaged!

Fig 4: Identifying Mounting Side Cover, Car Communication Computer CD Drive Warranty Seal And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) and remove CD drive.

Installation:

Ensure correct routing of cables.

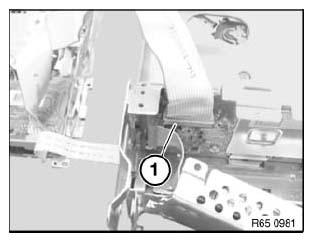

Fig 5: Identifying Car Communication Computer CD Drive Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
