65 75 071 Removing and installing (replacing) module for passenger compartment sensor

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with Notes On Protection Against Electrostatic Damage (ESD Protection) .

Necessary preliminary tasks:

Remove Complete Ceiling Light (Rear)

Open retaining hooks (1) and feed module for passenger compartment sensor (2) in direction of arrow out of trim (3) and remove.

Installation:

Retaining hooks (1) must not be damaged.

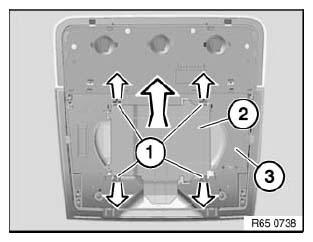

Fig 1: Identifying Retaining Hooks, Passenger Compartment Sensor Module And Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding.
