65 20 090 Removing and installing or replacing antenna amplifier

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Trim For Auxiliary Brake Light

Release screws (3).

Unlock plug connections (2) and (4) and disconnect.

Remove antenna amplifier (1).

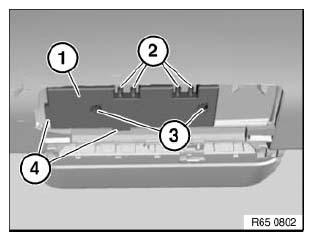

Fig 1: Identifying Plug Connection Locks, Screws And Antenna Amplifier

Courtesy of BMW OF NORTH AMERICA, INC.
