65 13 400 Removing and installing/replacing left or right frequency gate

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front door trim panel

Disconnect plug connection (1).

Release screws (2) and remove frequency gate.

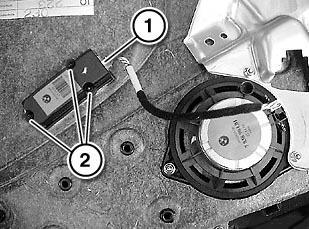

Fig 1: Identifying Frequency Gate Plug Connector And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
