65 12 230 Removing and installing/replacing DAB tuner
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with Notes On Protection Against Electrostatic Damage (ESD Protection)
.
NOTE:
Follow instructions for Handling Optical Fibres
.
Necessary preliminary tasks:
- Disconnect Battery Negative Lead
- Remove Luggage Compartment Floor Trim
E93:
- Remove panel for luggage compartment partition

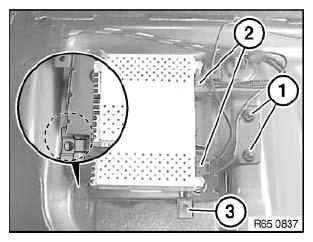

Release screws (1).
Disconnect plug connections (2) and remove bracket with DAB tuner (3).
Installation:
DAB tuner bracket (3) must be inserted in guides.
Replacement:

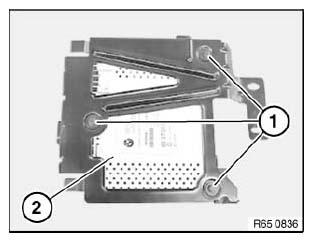

Release screws (1) and remove DAB tuner (2).
IMPORTANT:
Read and comply with Notes On Protection Against Electrostatic Damage (ESD Protection)
.
NOTE:
Follow instructions for Handling Optical Fibres
.
Necessary preliminary tasks:
- Disconnect Battery Negative Lead
- Remove Luggage Compartment Trim
E93:
- Remove panel for luggage compartment partition
Release screws (1).
Disconnect plug connections (2) and remove bracket with DAB tuner (3).
Installation:
DAB tuner bracket (3) must be inserted in guides.
Replacement:
Release screws (1) and remove DAB tuner (2).
