65 12 220 Removing and installing/replacing satellite radio (US version only)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with Notes On Protection Against Electrostatic Damage (ESD Protection) .

NOTE: Follow instructions for Handling Optical Fibres .

Necessary preliminary tasks:

Disconnect Negative Battery Cable
Remove Luggage Compartment Floor Panel

Disconnect plug connection (1).

Release screws (2) and feed out satellite tuner (3).

Installation:

Unlock plug connections correctly.
Bracket (4) must be inserted in guides on floor pan.

Fig 1: Identifying Satellite Tuner, Plug Connection, Mounting Bracket And Screws
Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1) and remove bracket (2) from satellite tuner (3).

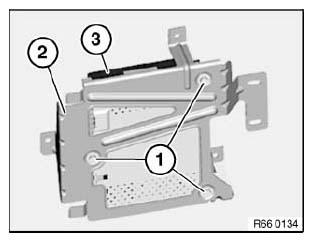

Fig 2: Identifying Satellite Tuner, Mounting Bracket And Screws
