65 11 ... Instructions on setting the installation location on the CD changer (E36/E61/E63/E64/E83/E87/E90/E91)
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
To ensure trouble-free CD changer operation, ensure both suspension springs are correctly positioned (horizontal/vertical). If necessary, correct adjustment.
To avoid premature contamination of the CD changer, make sure the magazine compartment flap is permanently closed.
NOTE:
For purposes of clarity, the following graphics show the CD changer removed.
NOTE:
- Observe the following repair instructions if the magazine cannot be removed from the CD changer.
- E36: Observe Notes on handling CD changers
- E60, E61, E63, E64: Remove CD changer magazine
- E83: Ejection via self-diagnosis
- E87, E90, E91: CD changer must be sent in

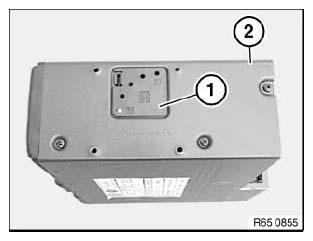

Remove cover cap (1) from CD changer (2).

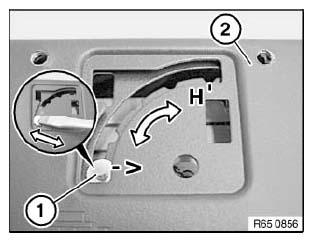

Arrange installation location of CD changer (2) with a suitable tool by sliding suspension spring (1) into required position.
