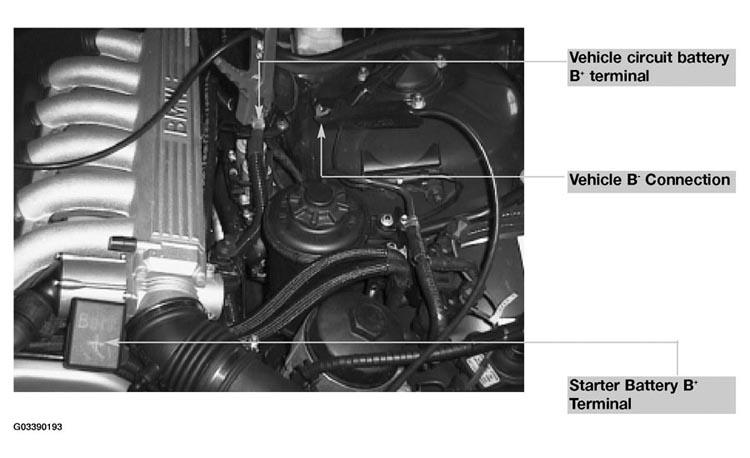

Charging Mode (in the workshop)
WARNING: This page does not describe the selected car, but rather 208 other vehicles, including the 2010 BMW Z4, 2010 BMW X6 M, 2010 BMW X6, 2010 BMW X5 M, and 2010 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
The isolation switch monitors starter battery voltage during key off conditions and continues monitoring after the vehicle and the isolation switch have entered sleep mode.
- If starter battery voltage exceeds 13.8 volts during charging in the workshop, the isolation switch comes out of sleep mode and closes.
This causes the starter battery voltage to bleed off to the vehicle circuit battery, charging the circuit battery and protecting the starter battery from overcharging.
The isolation switch remains closed until the next key on cycle.
