The Grids

WARNING: This page does not describe the selected car, but rather 208 other vehicles, including the 2010 BMW Z4, 2010 BMW X6 M, 2010 BMW X6, 2010 BMW X5 M, and 2010 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

The grids are the supporting framework for the active material of the plates. They also conduct current to and from the active material plates.

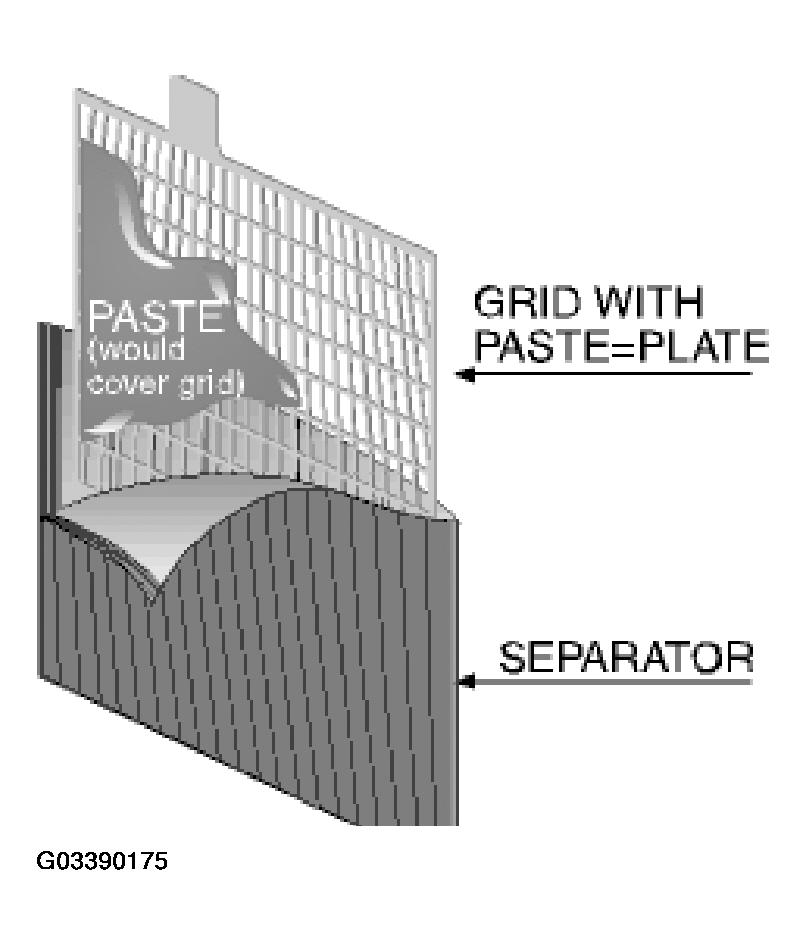

Fig 1: Identifying Battery Grids
G03390175Courtesy of BMW OF NORTH AMERICA, INC.
