Component Description

WARNING: This page does not describe the selected car, but rather 228 other vehicles, including the 2013 BMW X6, 2012 BMW X6, 2012 BMW 750i, 2012 BMW 750Li, and 2011 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

RDW Control Unit

Fully diagnosis-compatible

Task:

evaluates wheel speeds.
a warning is transmitted as required.

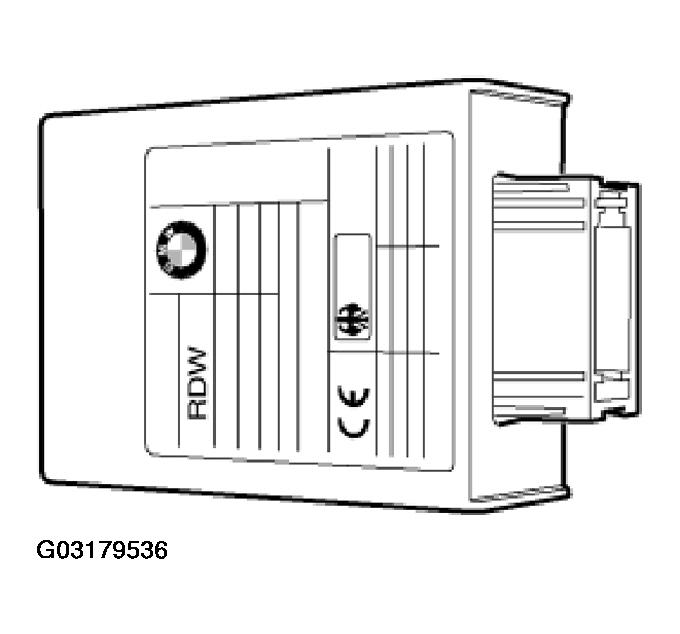

Fig 1: Identifying RDW Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Set Button

Installed in the dashboard to the right of the steering wheel. Symbol: tire cross-section with warning triangle.

Task: initialization after resetting cold tire pressure or after changing tire or wheel location.

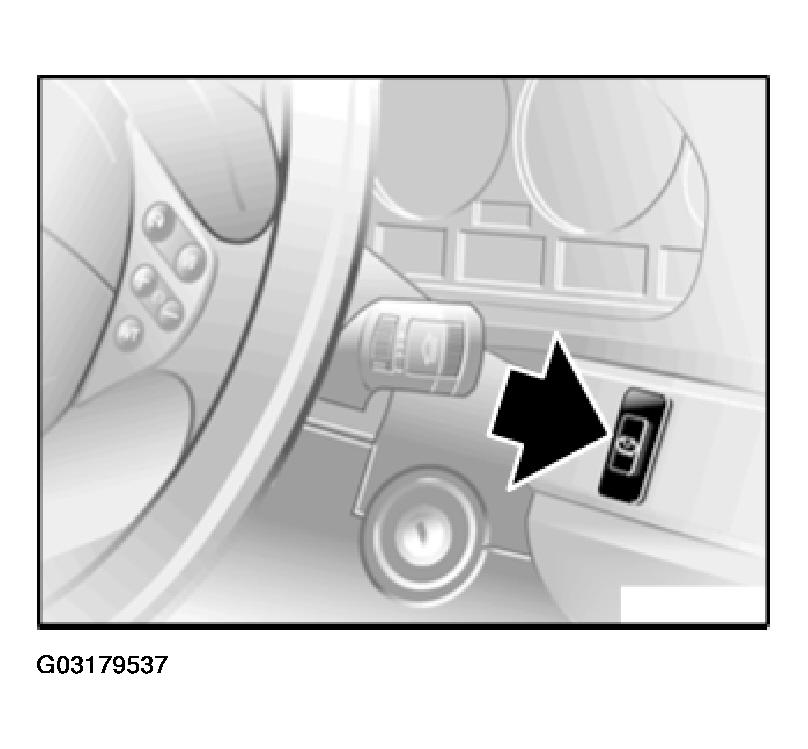

Fig 2: Identifying Set Button

Courtesy of BMW OF NORTH AMERICA, INC.

Display Element In Instrument Cluster

Indicator lamp lights up red:

drop in tire pressure 30 +/- 10 %

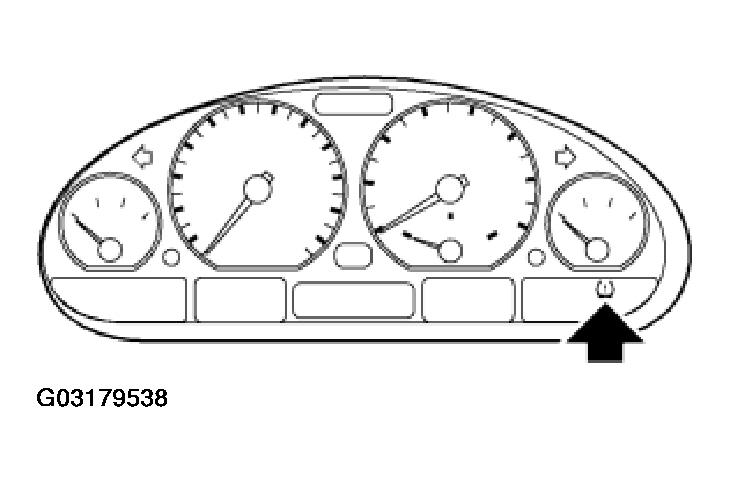

Fig 3: Identifying RDW Indicator Lamp

Courtesy of BMW OF NORTH AMERICA, INC.
