Disc Wheels

WARNING: This page does not describe the selected car, but rather 228 other vehicles, including the 2013 BMW X6, 2012 BMW X6, 2012 BMW 750i, 2012 BMW 750Li, and 2011 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

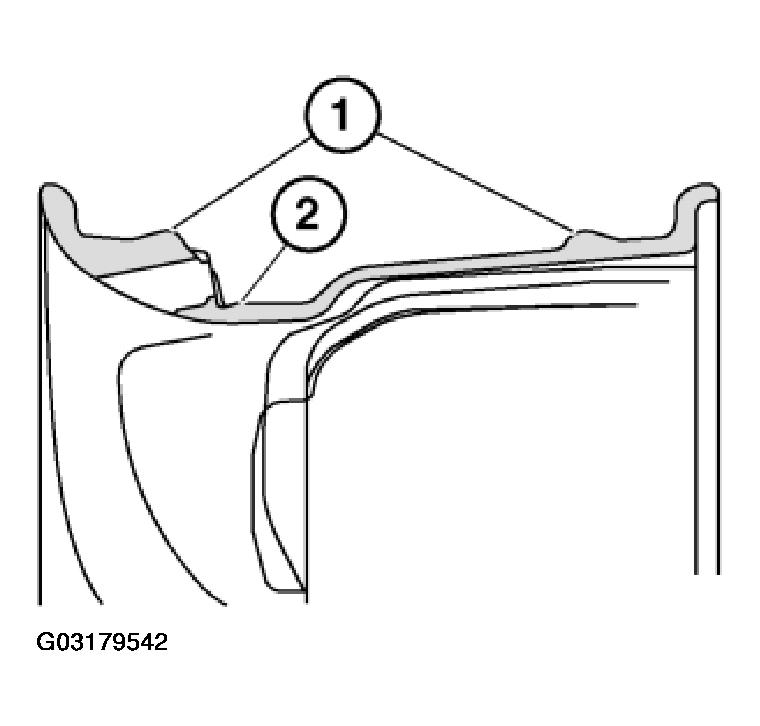

H2 Disc Wheel (Standard Disc Wheel) For Emergency Running System With Integrated Support Ring

(1) Hump 2 of standard disc wheel

Fig 1: Identifying H2 Disc Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

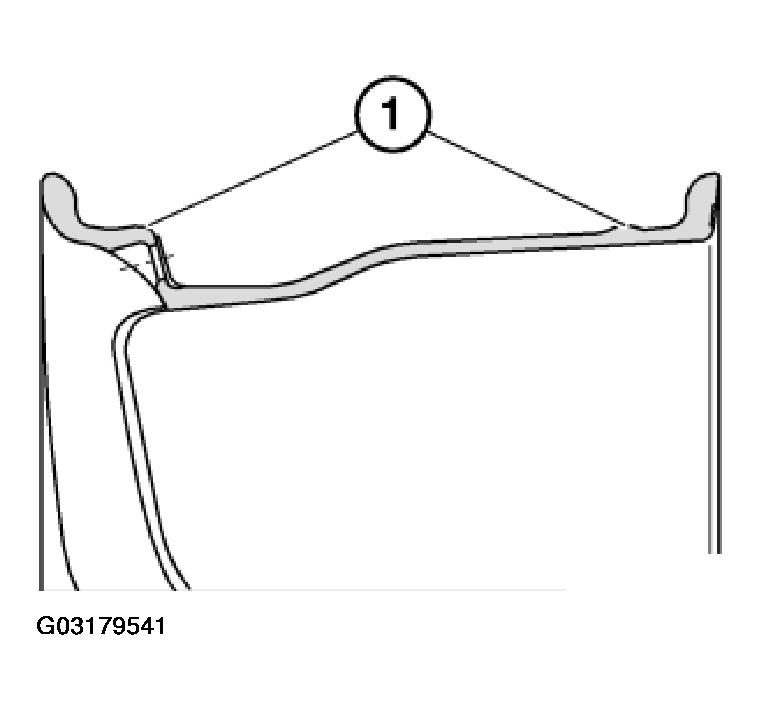

EH2 Disc Wheel For Emergency Running System With Self-Supporting Tyre

Fig 2: Identifying EH2 Disc Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

Extended Hump 2 of disc wheel
Drop center relocated a few millimetres to the center (precentring on outside)

NOTE: The new EH2 disc wheels (extended Hump 2 inner and outer) will be used more frequently on BMW vehicles in the future as they can also help to delay standard tires from being lost in the event of a drop in tire pressure.
Example: from current 1.1 bar to 0.6 bar (X5 or Landrover disc wheel)
