7.4 Printing Out The Data
WARNING: This page does not describe the selected car, but rather 228 other vehicles, including the 2013 BMW X6, 2012 BMW X6, 2012 BMW 750i, 2012 BMW 750Li, and 2011 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

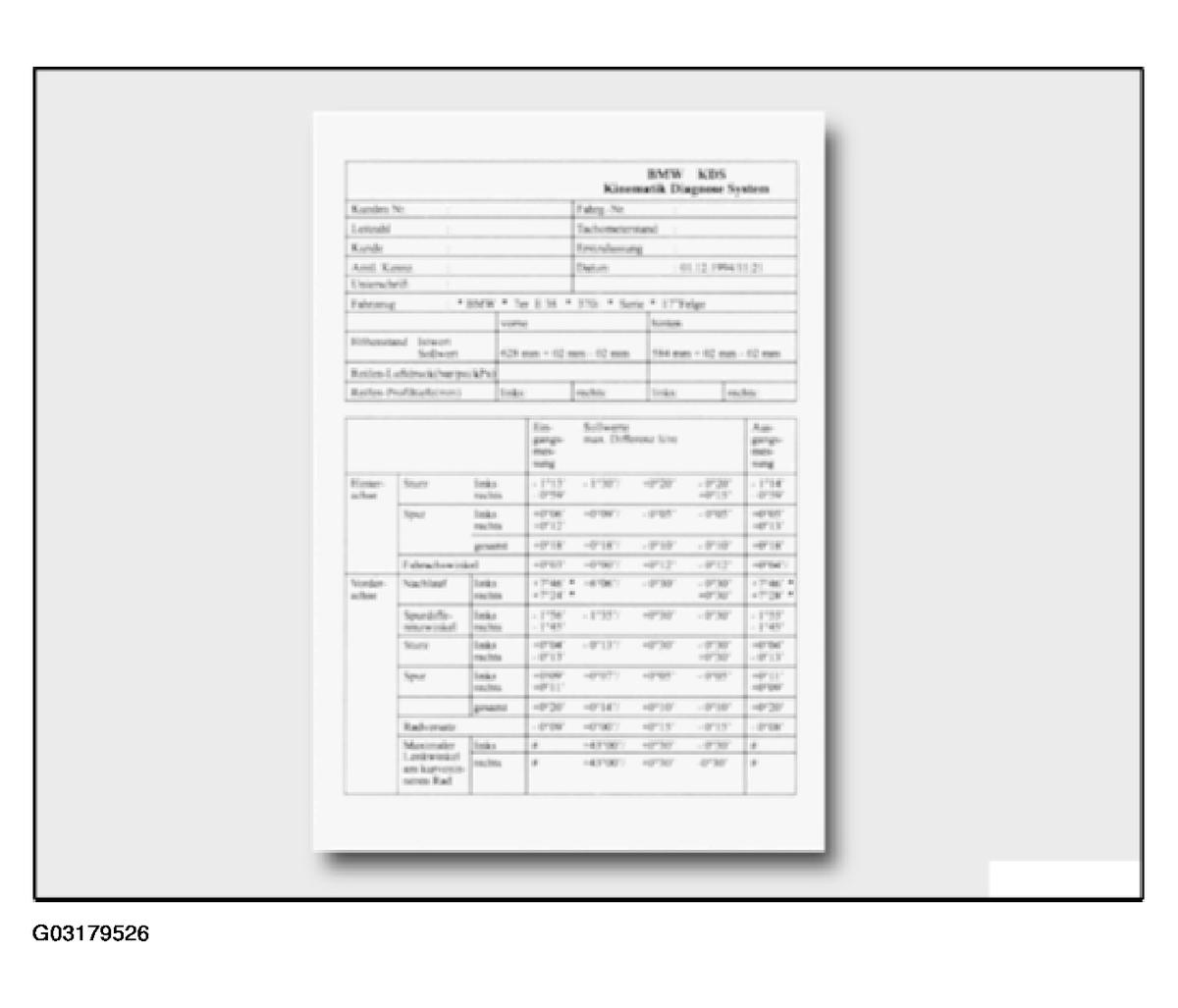

The report printout from the integrated DIN A4 printer is subdivided into three sections:
- Header lines with customer and vehicle identification data --> the customer data entered before beginning the measurement as well as vehicle data are printed out here.
- Centre section with vehicle data -> this includes the make, type, model and vehicle model year defined when the setpoint data record was selected. The values previously measured for height level, tire pressure and tread depth are also printed in this section.
- The end section with all vehicle alignment values comprises the 3 columns initial measurement, setpoint values and output measurement. The measured values are recorded separately in these three columns.
