5.7 Kingpin Offset

WARNING: This page does not describe the selected car, but rather 228 other vehicles, including the 2013 BMW X6, 2012 BMW X6, 2012 BMW 750i, 2012 BMW 750Li, and 2011 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

The kingpin offset is the distance from the center of the wheel contact point to the contact point of the kingpin extrapolation.

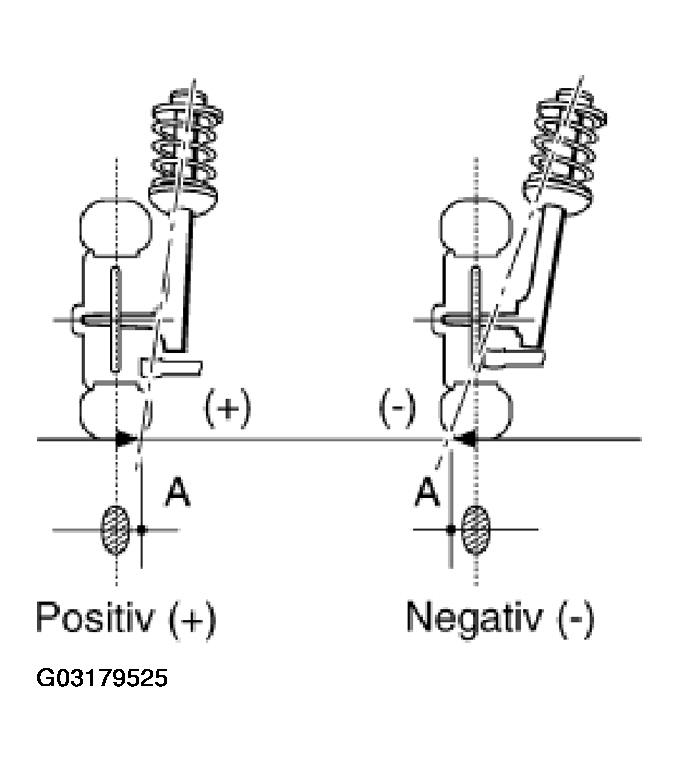

Fig 1: Identifying Kingpin Offset Angle

Courtesy of BMW OF NORTH AMERICA, INC.
