5.6 Wheel Displacement Angle
WARNING: This page does not describe the selected car, but rather 228 other vehicles, including the 2013 BMW X6, 2012 BMW X6, 2012 BMW 750i, 2012 BMW 750Li, and 2011 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

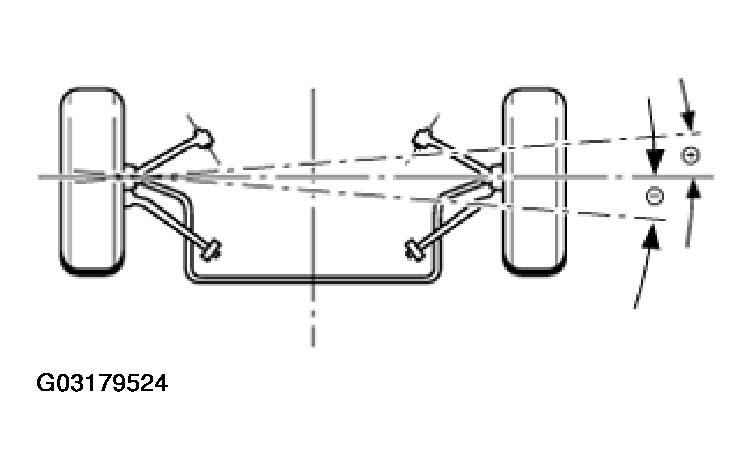

- The wheel displacement angle is the angular deviation of the connecting line of the wheel contact points in relation to a line running at 90° to the geometrical drive axis. The wheel displacement angle is positive if the right-hand wheel is displaced to the front, and is negative if it is displaced to the rear.
