5.5 Geometrical Drive Axis/Symmetrical Axis

WARNING: This page does not describe the selected car, but rather 228 other vehicles, including the 2013 BMW X6, 2012 BMW X6, 2012 BMW 750i, 2012 BMW 750Li, and 2011 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

(1) The geometrical drive axis is the line bisecting the angle of the overall rear wheel toe. The measurements of the front wheels relate to this axis.
(2) The symmetrical axis represents the center line through the front and rear axes.

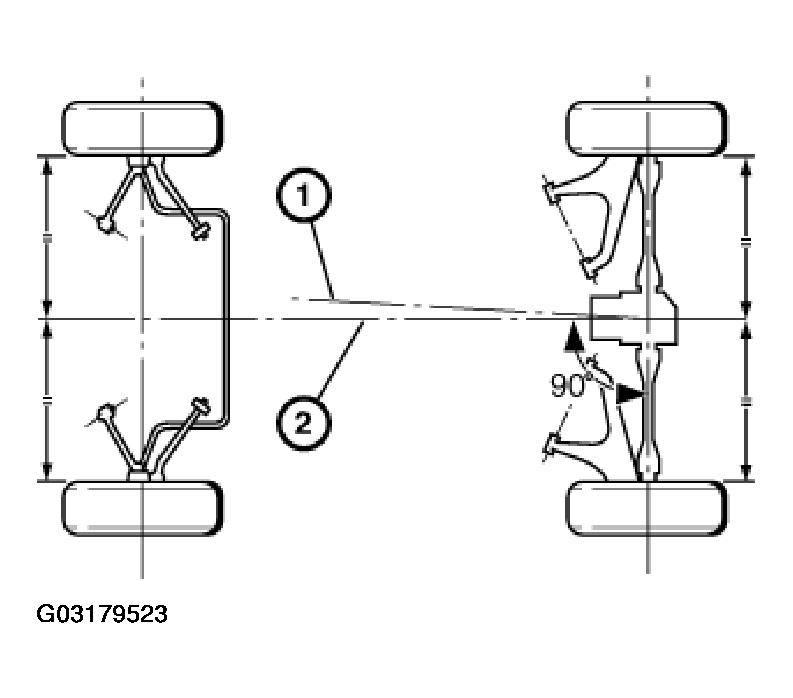

Fig 1: Identifying Geometrical Drive Axis Angle

Courtesy of BMW OF NORTH AMERICA, INC.
