5.1 Toe-Differential Angle
WARNING: This page does not describe the selected car, but rather 228 other vehicles, including the 2013 BMW X6, 2012 BMW X6, 2012 BMW 750i, 2012 BMW 750Li, and 2011 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Description:

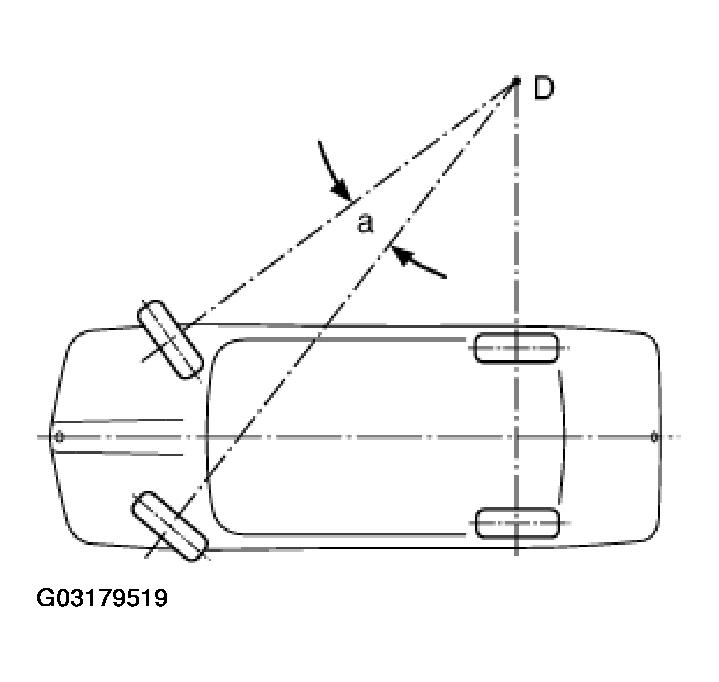

- The toe-differential angle (a) is the angular position of the internal wheel on the curve in relation to the external wheel on the curve when driving round bends. The steering is designed such that the angular position of the wheels in relation to each other changes as the steering angle increases.
- In ideal cases, the wheel axes meet at point D in any steering position (except for straight ahead).
