4.1 Environment
WARNING: This page does not describe the selected car, but rather 228 other vehicles, including the 2013 BMW X6, 2012 BMW X6, 2012 BMW 750i, 2012 BMW 750Li, and 2011 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
All lifting platforms currently recommended by BMW (see Workshop Equipment Planning documentation, Issue 11) for wheel alignment meet the requirements for the BMW KDS.
No particular requirements have to be met in respect of the location at which the BMW KDS is used. The measuring device can be installed over working pits or on lifting platforms.
Requirements:
- Wheel alignment pits
- Pillar-type lifts with set-down device
- 2 plunger-type lifting platforms with set-down device
- Repair stands with set-down device
- One measuring area (approx. 4.5 m x 7.0 m).
- The rotating plates must be pinned to the platform

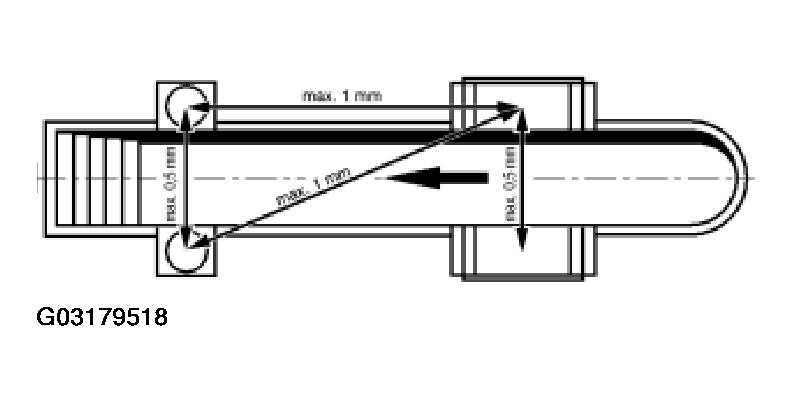

The support surfaces for the rotating and sliding plates may only display the following maximum height difference:
- from left to right +/- 0.5 mm
- from front to back +/- 1.0 mm
- diagonally +/- 1.0 mm.
NOTE:
A difference in the height of the rotary plates of +/- 2 mm from left to right results in a measuring error of 4.8° in the camber.
As a comparison: The camber tolerance on the E36 is +/- 10'. The tire tread difference or varying tire pressure cause measuring errors of the same magnitude.
