3.7 BMW Quick-Acting Clamp

WARNING: This page does not describe the selected car, but rather 228 other vehicles, including the 2013 BMW X6, 2012 BMW X6, 2012 BMW 750i, 2012 BMW 750Li, and 2011 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

BMW quick-acting clamp for holding the measuring sensors precisely in position and measuring without rim run-out compensation.

NOTE: Any existing quick-acting clamps, e.g. from older F1600s or ML-3000s, must not be used on the BMW KDS.

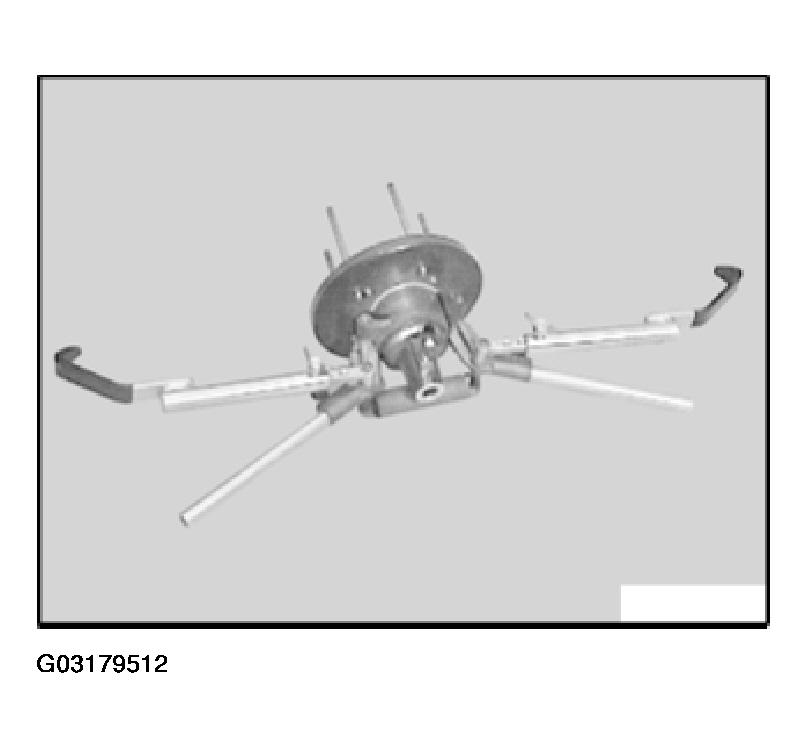

Fig 1: Measuring BMW Quick-Acting Clamp For Holding
G03179512Courtesy of BMW OF NORTH AMERICA, INC.
