3.6 Measuring Sensors With CCD Camera
WARNING: This page does not describe the selected car, but rather 228 other vehicles, including the 2013 BMW X6, 2012 BMW X6, 2012 BMW 750i, 2012 BMW 750Li, and 2011 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

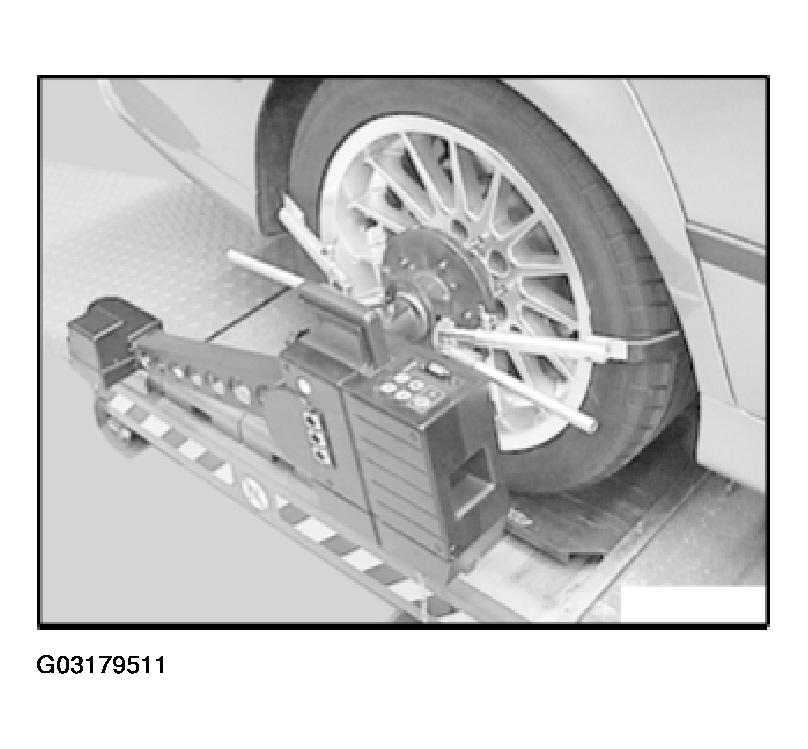

The measuring sensors are each equipped for automatic measurement with two CCD cameras and their own processor for the cableless infrared transmission of data with integrated batteries. Benefits:
- No temperature deviation
- Very high measuring resolution (the track
- Single track range of more than +/- 9 degrees for the constant display of toe-in when changing the tie-rod ends
- Exact system accuracy, i.e. when carrying out measurements at the vehicle following rim run-out compensation, the toe-in and camber measurements are accurate to 2 angular minutes
