3.10 Spoiler Adapter
WARNING: This page does not describe the selected car, but rather 228 other vehicles, including the 2013 BMW X6, 2012 BMW X6, 2012 BMW 750i, 2012 BMW 750Li, and 2011 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
- In the case of vehicles with very low spoilers, the sensor beam may be broken by the spoiler between the measuring sensors. This primarily occurs in front of the front axle.

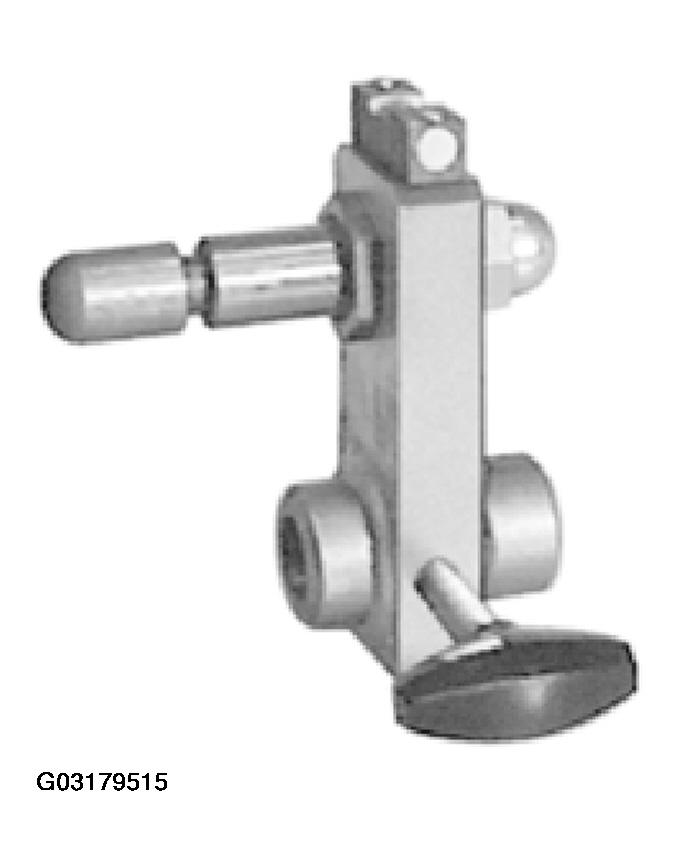

- The spoiler adapter is used here as a connecting element between the measuring equipment clamp and the measuring sensor. Thanks to the adapter, the sensors are placed 50 mm lower, thus allowing the sensor beam to move freely below the spoiler.
