Buzzers, Relays & Timers

WARNING: This page is about a different car, the 2001 BMW M Roadster and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

BUZZERS, RELAYS & TIMERS LOCATION

Component	Component Location
Air Conditioning Relay, Motronic	In front power distribution box. See Figure .
Blower Relay	In front power distribution box. See Figure .
Brake Fluid Level Relay	Below right side of dash.
Central Locking Luggage Compartment Lid Motor Relay	In front power distribution box. See Figure .
Compressor Control Relay	In front power distribution box. See Figure .
Convertible Top Relay I (Close)	On left side of luggage compartment.
Convertible Top Relay II (Open)	On left side of luggage compartment.
Driver's Seat Length Adjust Cut-Off Relay	Under left front seat.
Driver's Seat Tilt Adjust Cut-Off Relay	Under left front seat.

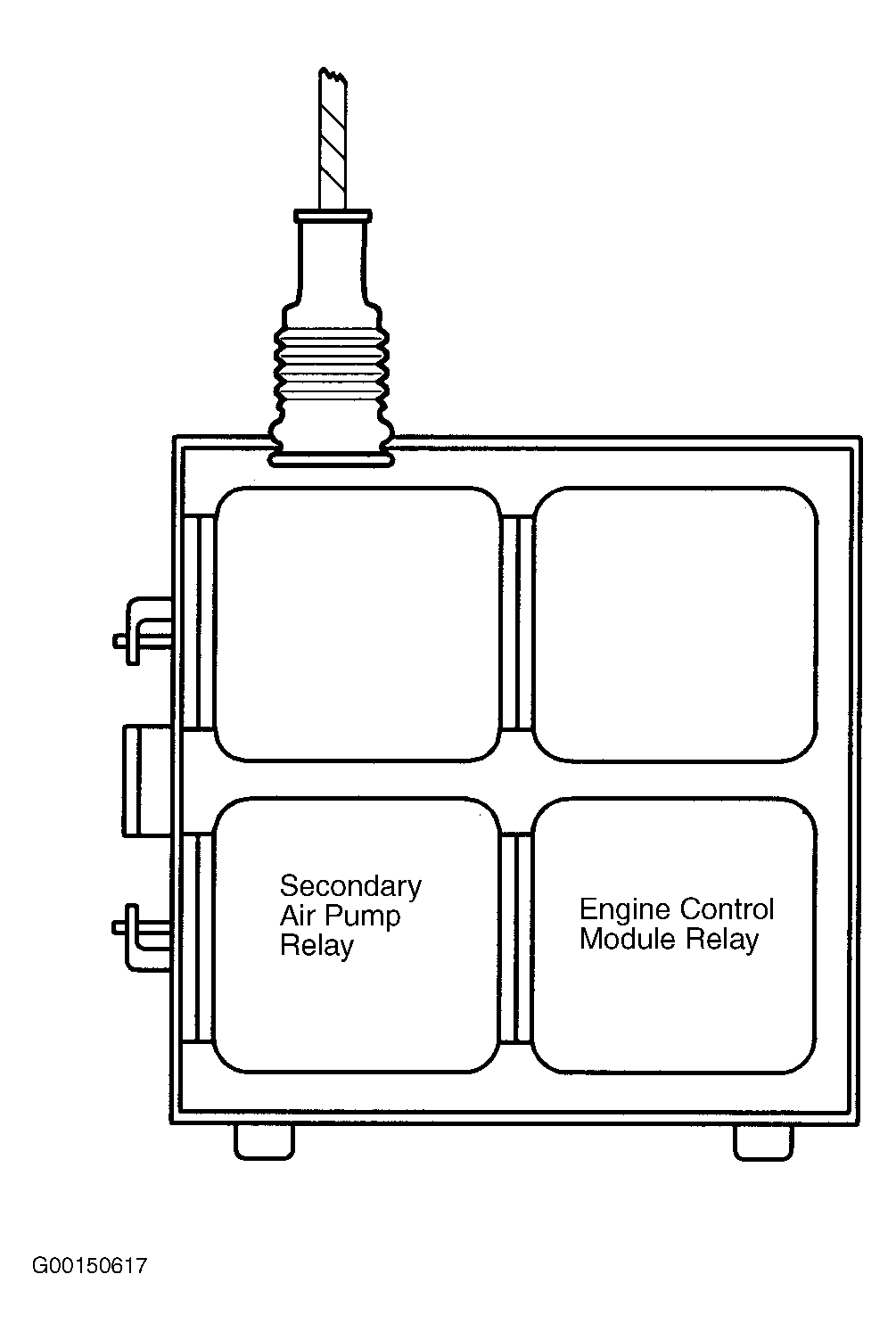

Engine Control Module Relay	In E-Box, on right rear side of engine compartment. See Figure .
Engine Control Relay	In front power distribution box. See Figure .
Fuel Pump Relay	On relay panel, under left side of dash. See Figure .
Hazard Flasher Relay	In front power distribution box. See Figure .
High Beam Light Relay	On relay panel, under left side of dash. See Figure .
High Speed Relay	In front power distribution box. See Figure .
Horn Relay	In front power distribution box. See Figure .
Left Park Light Relay	In front power distribution box. See Figure .
Low Beam Light Relay	In front power distribution box. See Figure .
Normal Speed Relay	In front power distribution box. See Figure .
Passenger's Seat Length Adjust Cut-Off Relay	Under right front seat.
Passenger's Seat Tilt Adjust Cut-Off Relay	Under right front seat.
Right Park Light/License Plate Light Relay	In front power distribution box. See Figure .
Secondary Air Pump Relay	In E-Box, on right rear side of engine compartment. See Figure .
Unloader Relay, Terminal 15	In front power distribution box. See Figure .
Valve Relay	In front power distribution box. See Figure .
