67 66 010 Removing and installing/replacing lumbar support drive mechanism on front seat, left or right

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear panel on front seat backrest. See 52 14 198 REMOVING AND INSTALLING/REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/ELECTRIC)

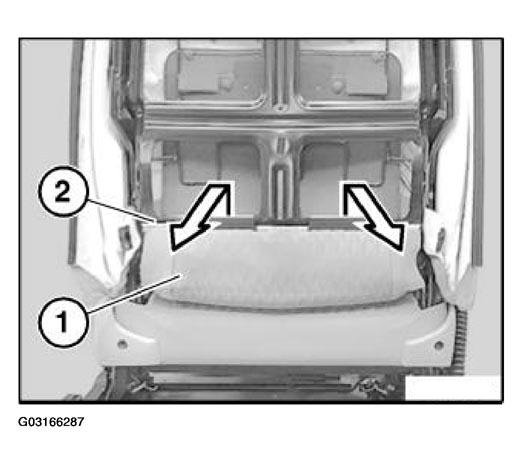

Detach backrest cover (1) in direction of arrow from backrest frame (2).

Fig 1: Disconnecting Backrest Cover From Backrest Frame

G03166287

Courtesy of BMW OF NORTH AMERICA, INC.

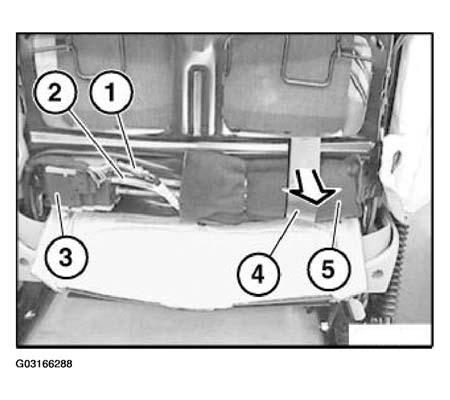

Disconnect plug connection (1).

Detach transparent hose (2) from valve housing (3).

NOTE: If necessary, gently heat transparent hose (2) if firmly seated.

If necessary, detach fabric adhesive tape (4).

Detach drive unit for lumbar support (5) with jacket in direction of arrow.

Fig 2: Disconnecting Drive Unit For Lumbar Support

G03166288

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

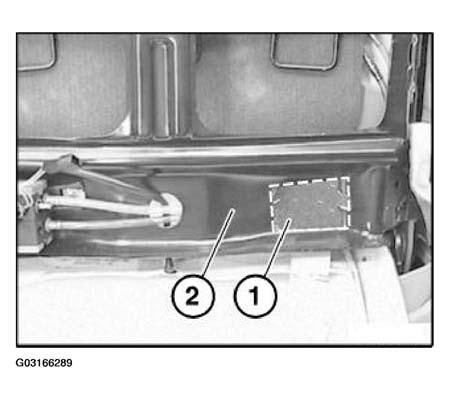

Clean adhesive area (1) on backrest frame (2).

Fig 3: Identifying Adhesive Area On Backrest Frame

G03166289

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

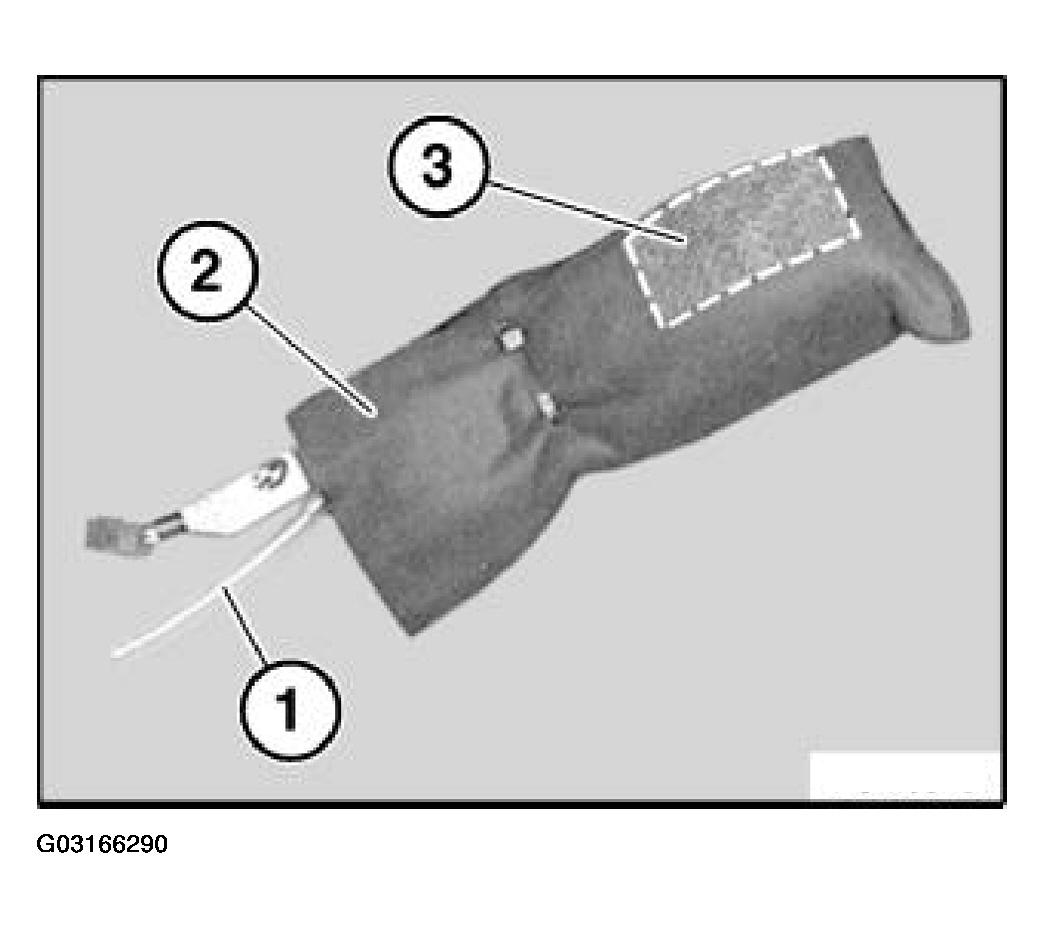

Transparent hose (1) of drive unit for lumbar support must not be kinked.

Pull off protective film (3) from jacket (2).

Fig 4: Identifying Transparent Hose And Protective Film On Jacket

G03166290

Courtesy of BMW OF NORTH AMERICA, INC.

Stick drive unit for lumbar support to backrest frame.

If necessary, secure jacket (2) with cable strap.
