64 22 161 Removing and installing/replacing center fresh air grille (heating)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove decorative strip above radio, refer to 51 16 221 REPLACING A CLIPPED-IN TRIM (DECORATIVE STRIP ON PANEL FOR INSTRUMENT PANEL, FRONT OR REAR DOOR) .

Release screws (1). Press fresh air grill from bottom to top and twist out backwards.

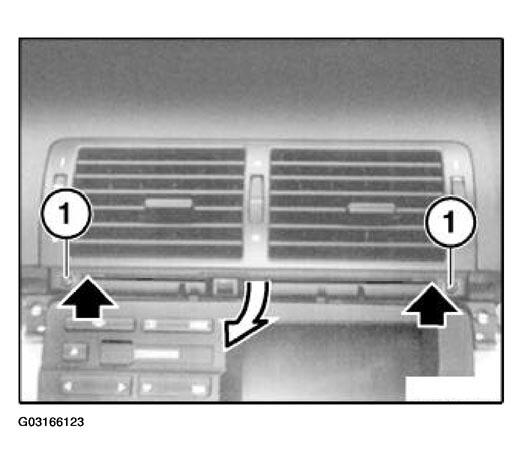

Fig 1: Pressing Fresh Air Grill From Bottom To Top And Twist Out Backwards
G03166123Courtesy of BMW OF NORTH AMERICA, INC.
