64 11 806 Removing and installing/replacing actuator drive of fresh-air/circulating-air flap on right
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Remove and install air duct for footwell on right, refer to 64 11... REMOVING AND INSTALLING/REPLACING AIR DUCT FOR RIGHT FOOTWELL .

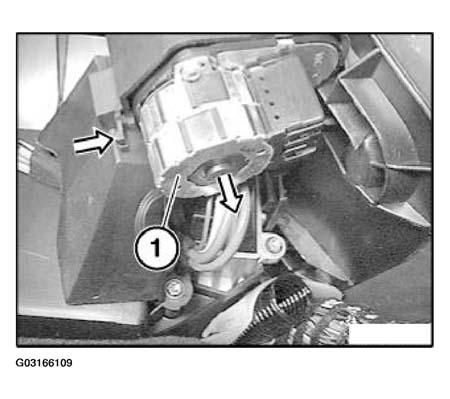

Unlock actuator drive (1) and remove towards bottom.
Installation:

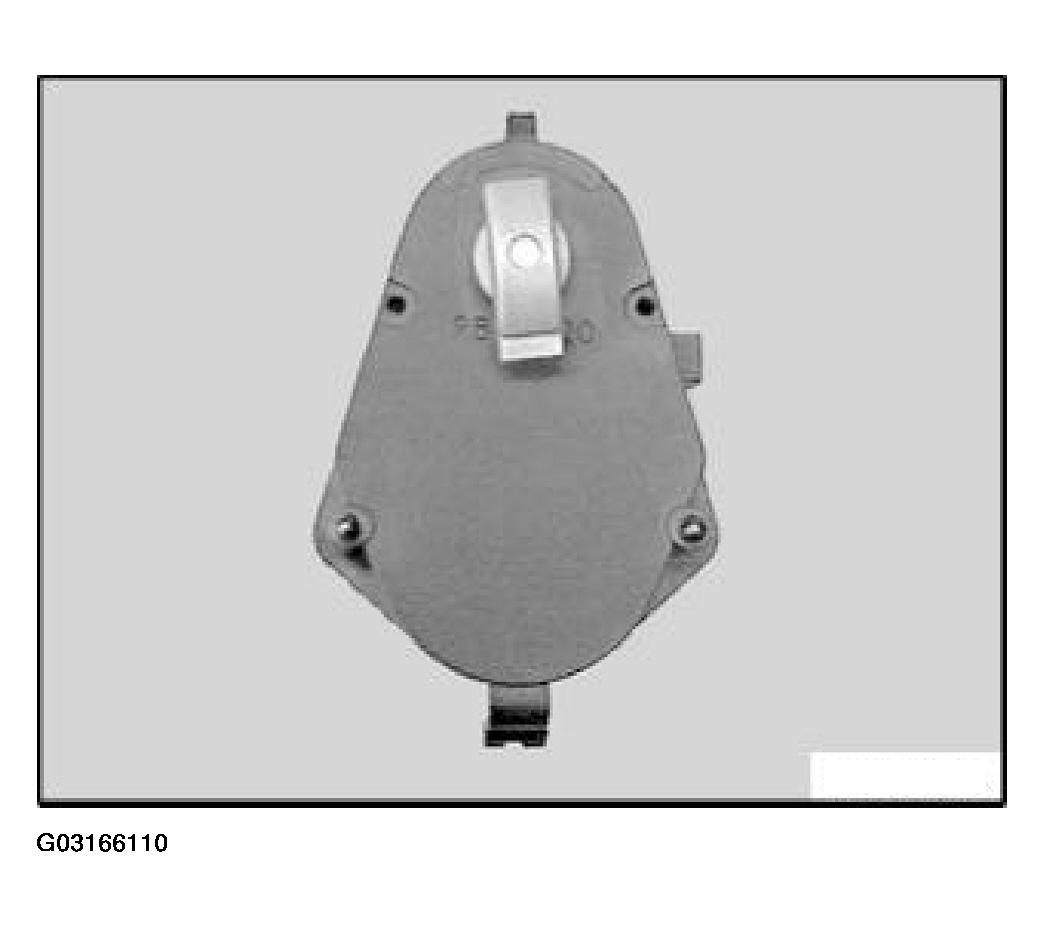

- If necessary, align shaft for fresh-air/circulating-air flap and drive.
