63 13 200 Removing and installing/replacing front left or right additional turn signal lamp (saloon/sedan, touring)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

64 1 020

Fig 1: Identifying Special Tool 64 1 020

Courtesy of BMW OF NORTH AMERICA, INC.

Up To 09/2001:

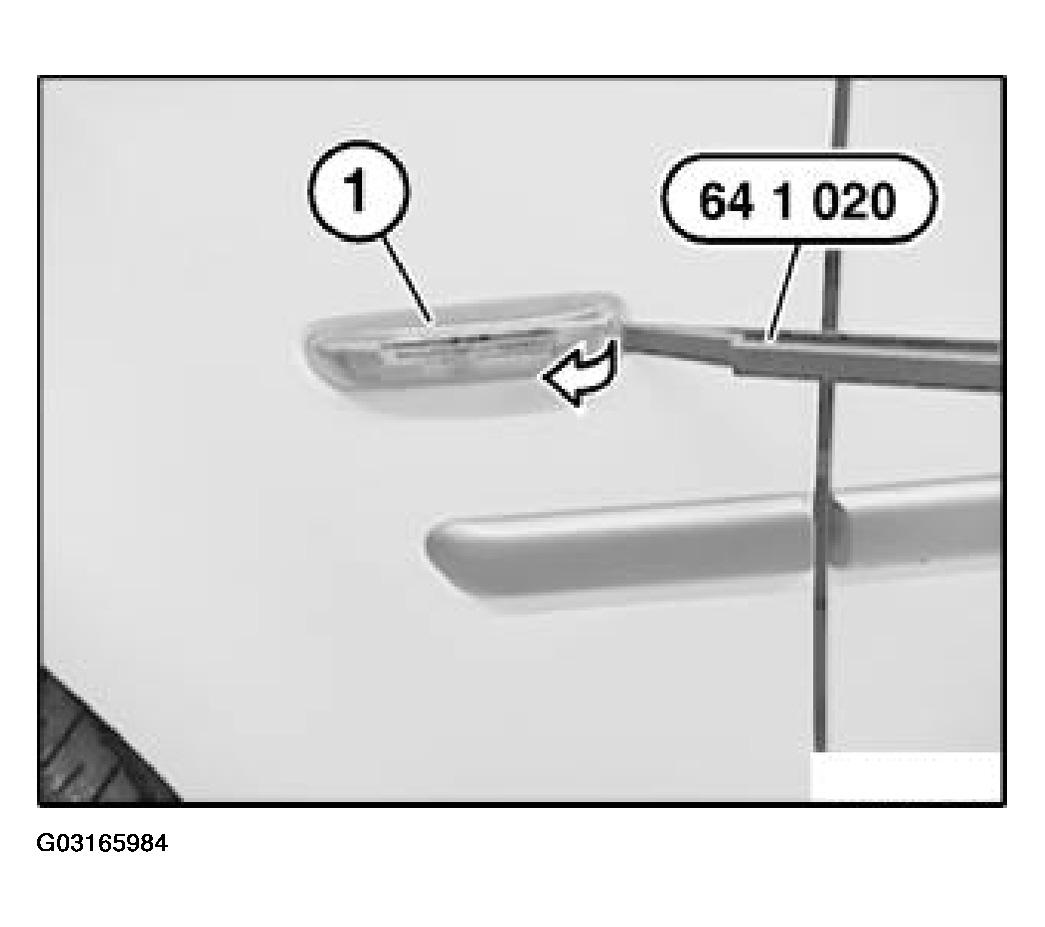

Lever out additional front turn signal lamp (1) with special tool 64 1 020 in direction of arrow.

Pull out additional front turn signal lamp (1) up to bulb holder, turn through approx. 90° and feed out.

Fig 2: Levering Out Additional Front Turn Signal Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

From 09/2001:

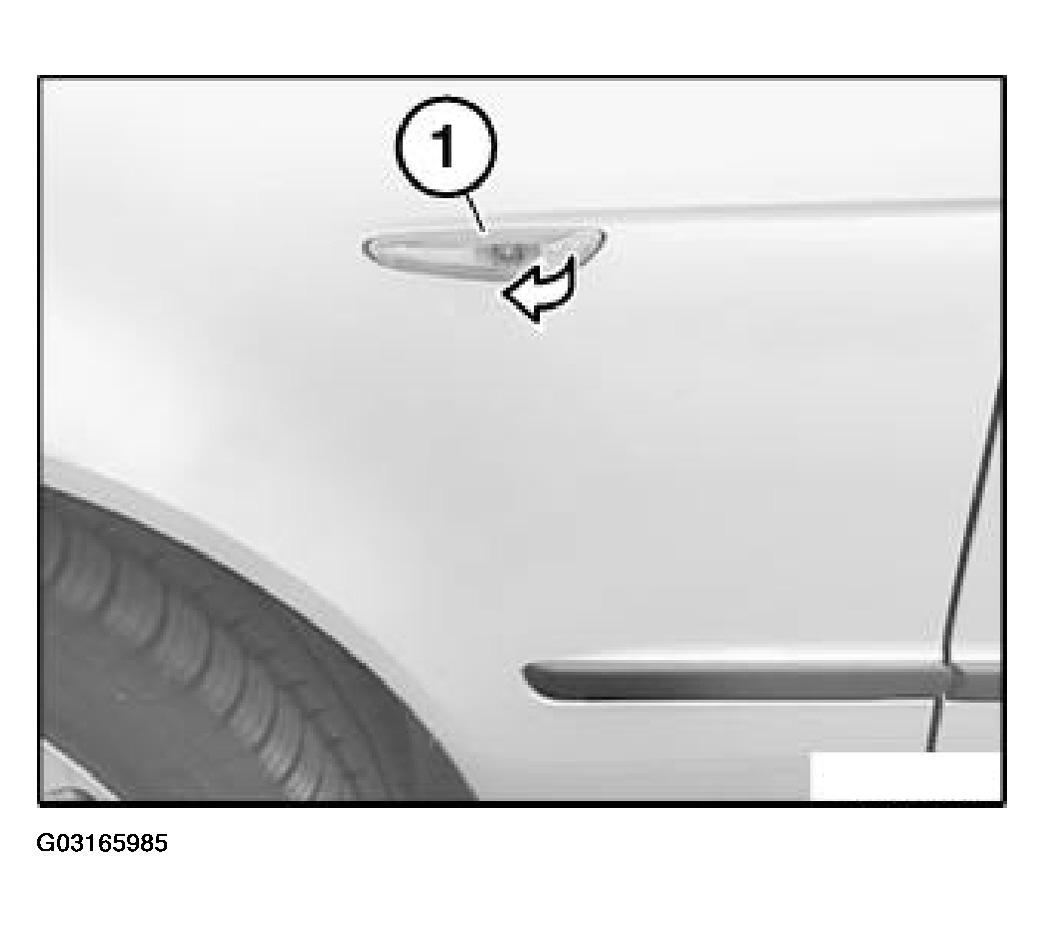

Unclip additional front turn signal lamp (1) in direction of arrow and remove.

All:

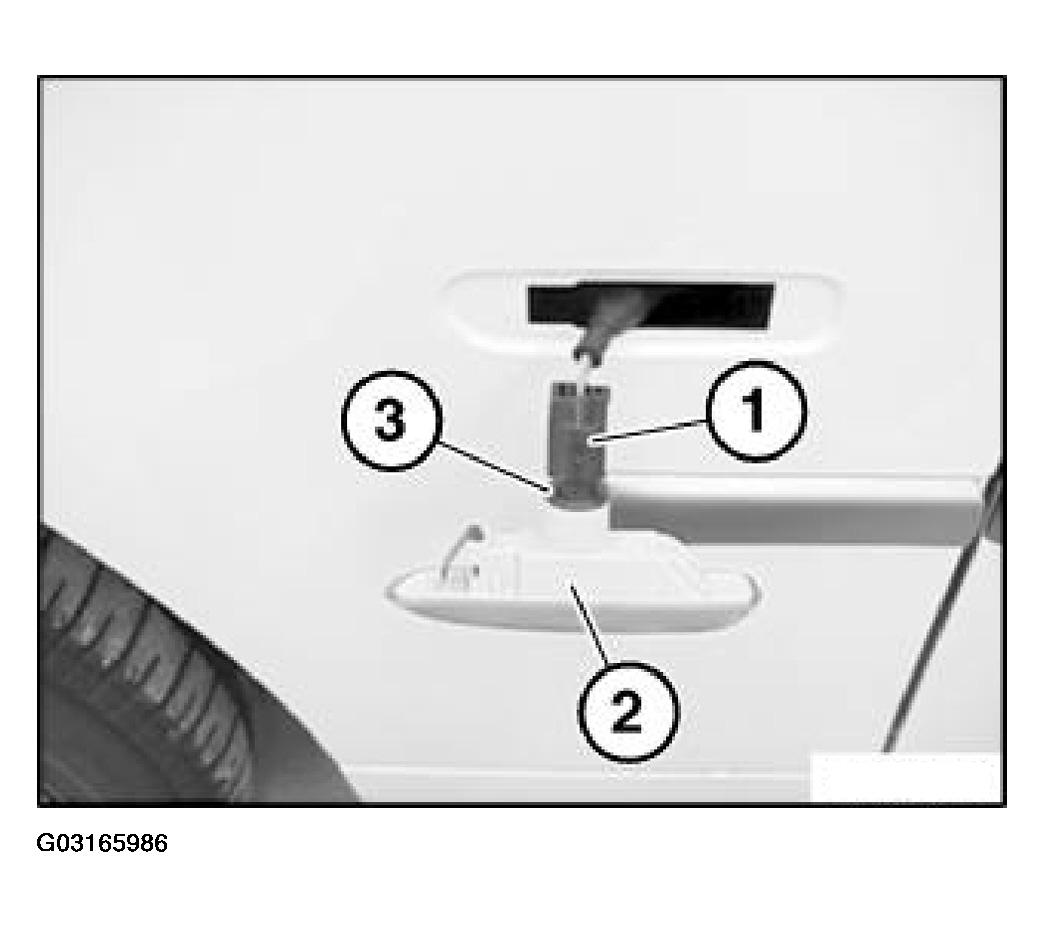

Disconnect plug connection (1) and remove additional front turn signal lamp (2).

Fig 3: Disconnecting Plug Connection (1) And Removing Additional Front Turn Signal Lamp (2)

Courtesy of BMW OF NORTH AMERICA, INC.
