63 99 315 Replacing bulb(s) for left or right rear light (saloon/sedan, touring)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights), refer to 63 99... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Remove socket housing for rear light, refer to 63 21 055 REPLACING A SOCKET HOUSING FOR LEFT OR RIGHT REAR LIGHT (SALOON/SEDAN, TOURING) .

Up to 09/2001:

Twist defective light bulb and pull out to remove.

Saloon/Sedan, In Side Panel:

NOTE:

Turn indicator.
Tail/brake light.
Tail light.

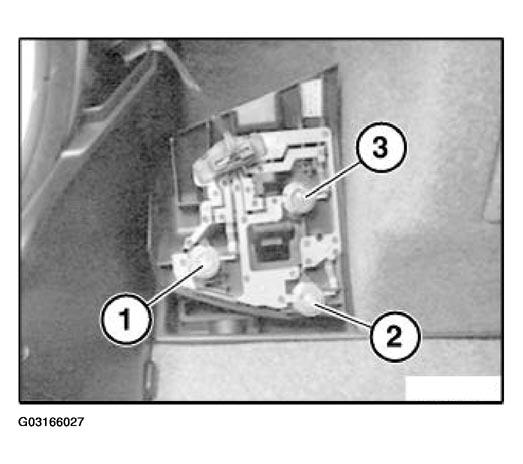

Fig 1: Identifying Turn Indicator, Tail/Brake Light And Tail Light

G03166027

Courtesy of BMW OF NORTH AMERICA, INC.

From 09/2001:

Twist defective light bulb and pull out to remove.

NOTE:

Brake light.
Turn indicator.
Tail light.
Tail light.

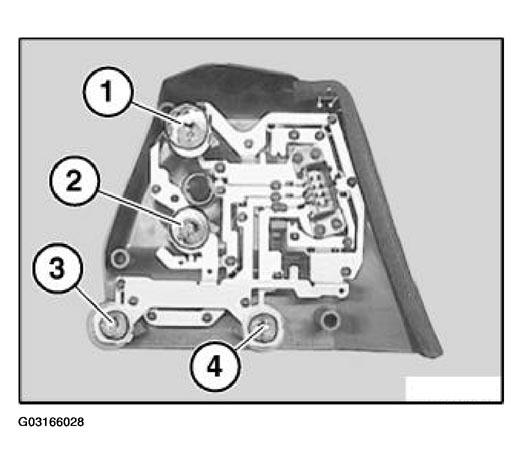

Fig 2: Identifying Brake Light, Turn Indicator, Tail Light And Tail Light

G03166028

Courtesy of BMW OF NORTH AMERICA, INC.

Touring, In Side Panel:

Twist defective light bulb and pull out to remove.

NOTE:

Turn indicator.
Tail light.
Tail/brake light.

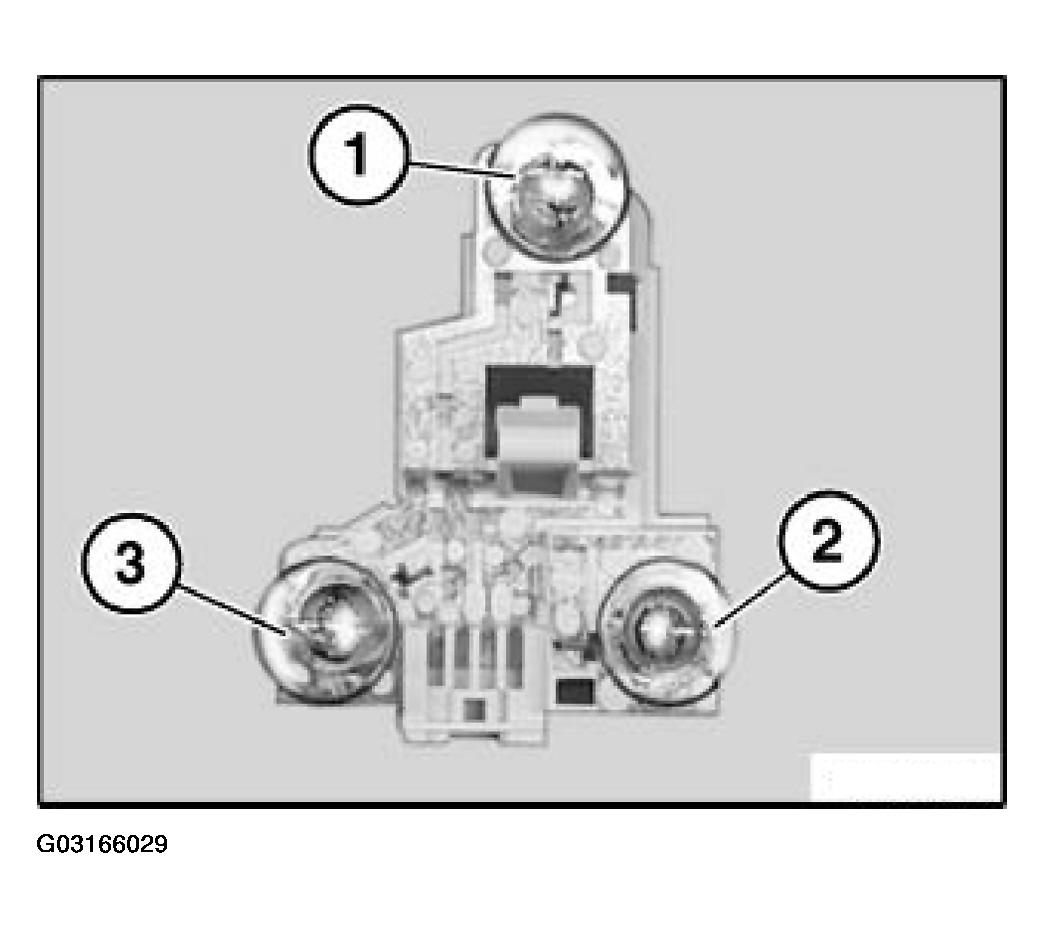

Fig 3: Identifying Turn Indicator, Tail Light And Tail/Brake

G03166029

Courtesy of BMW OF NORTH AMERICA, INC.

In Rear Lid:

Twist defective light bulb and pull out to remove.

Saloon/Sedan Up To 09/2001, Touring:

Reversing light.
Left side: if necessary rear fog light.
Right side: Not used.

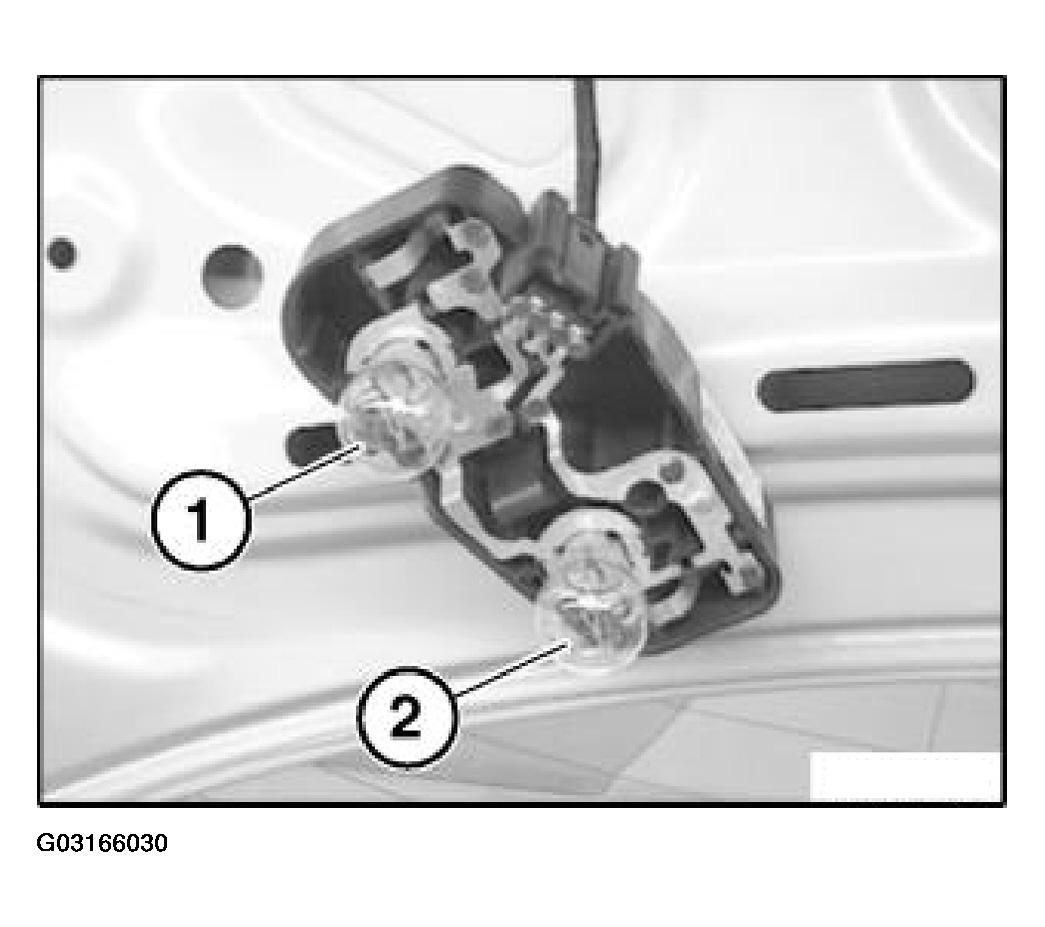

Fig 4: Identifying Reversing Light And Rear Fog Light

G03166030

Courtesy of BMW OF NORTH AMERICA, INC.

Saloon/Sedan From 09/2001:

Reversing light
Left side: Tail light, if necessary rear fog lamp.
Right side: Tail light.
