63 99 076 Replacing lamp for left xenon light (saloon/sedan, touring)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights), refer to 63 99... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Up to 09/2001:

Detach cover for low beam (1) in direction of arrow.

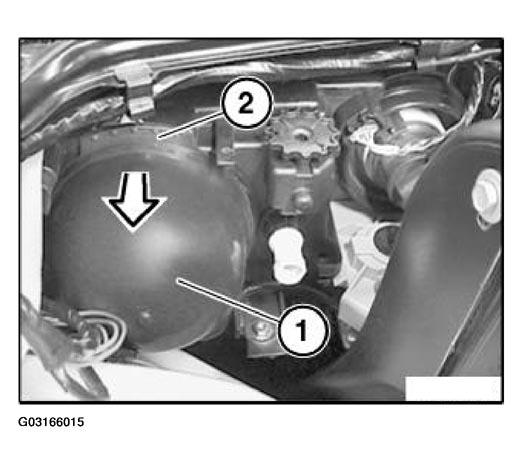

Fig 1: Detaching Cover For Low Beam

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure cover for low beam (1) and lug (2) are correctly seated.

From 09/2001:

Unlock cover for low beam (1) and remove.

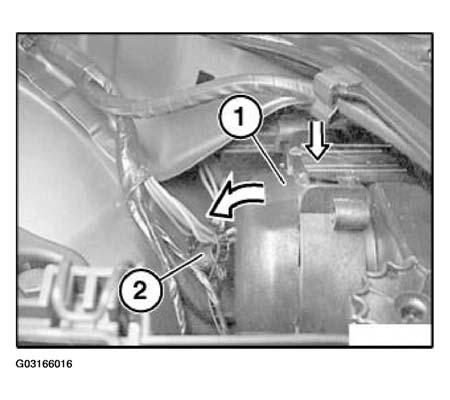

Fig 2: Unlocking Cover For Low Beam

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, open cable holder (2) and screw off.

NOTE: Feed out cover for low beam (1) carefully so as not to damage components underneath.

All:

Turn ignition unit for xenon light (1) in direction of arrow and remove.

Turn retaining ring (2) in direction of arrow and remove.

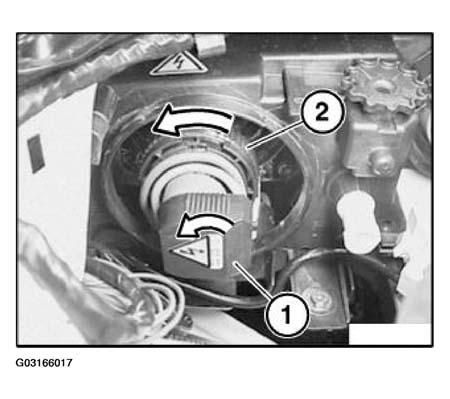

Fig 3: Turning Ignition Unit For Xenon Light

Courtesy of BMW OF NORTH AMERICA, INC.

Remove xenon lamp.
