54 12 211 Removing and installing complete glass slide/tilt sunroof (frame)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

Remove headliner, refer to 51 44 011 REMOVING AND INSTALLING/REPLACING HEADLINER (WITH SLIDE/TILT SUNROOF) .

NOTE:

Close glass slide/tilt sunroof lid.
Move front seats backwards/downwards as far as possible.
Remove glass slide/tilt sunroof with a second person helping.

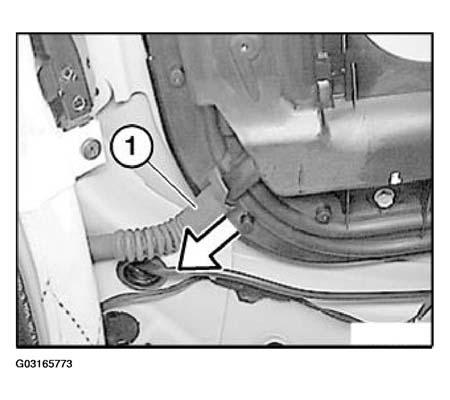

Detach all water drain hoses (1).

Fig 1: Detaching All Water Drain Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection from glass sunroof drive.

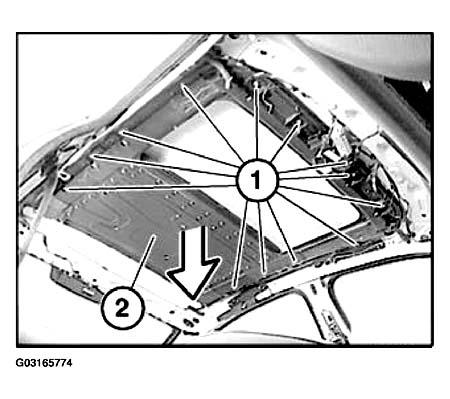

Release screws (1) and remove glass sunroof frame (2).

Fig 2: Releasing Screws And Removing Glass Sunroof Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque 5.2 N.m.

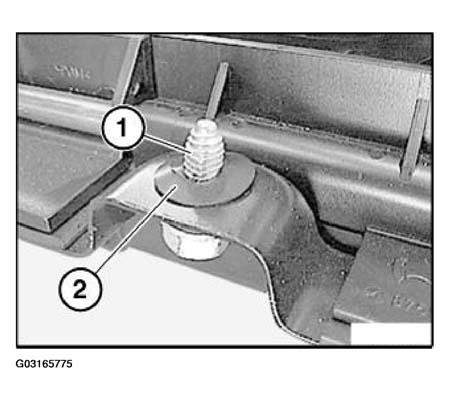

NOTE: In production, the screws (1) are secured with the washers (2) by robots.

In hand assembly, the washers (2) are not fitted.

Fig 3: Identifying Screws And Washers

Courtesy of BMW OF NORTH AMERICA, INC.
