54 12 136 Removing and installing/replacing headliner for glass slide/tilt sunroof lid

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

Installation:

If headliner is difficult to move, apply a light coat of Renax GL1 (manufactured by Fuchs) to guide duct.

Remove glass sunroof lid, refer to 54 12 115 REMOVING AND INSTALLING GLASS SLIDING/TILTING SUNROOF LID .

Slowly pull headliner (floating) fully towards front.

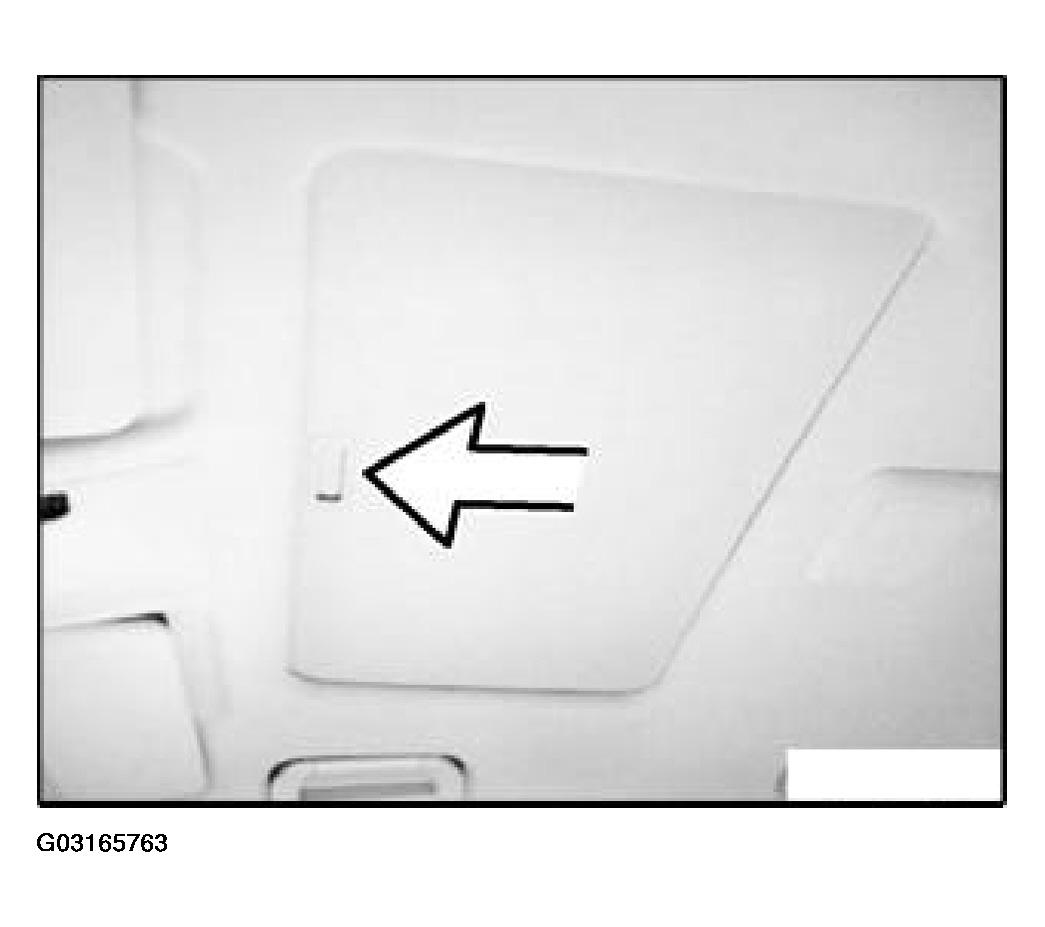

Fig 1: Pulling Headliner Fully Towards Front

G03165763

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) from sliding member (2).

Installation:

Tightening torque, 0.9 N.m.

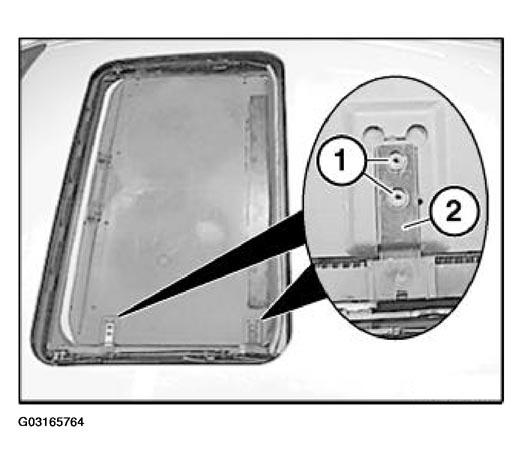

Fig 2: Releasing Screws From Sliding Member

G03165764

Courtesy of BMW OF NORTH AMERICA, INC.

Press headliner (1) to right against springs and at same time detach sliding member (2) from guide duct (3) and headliner (1).

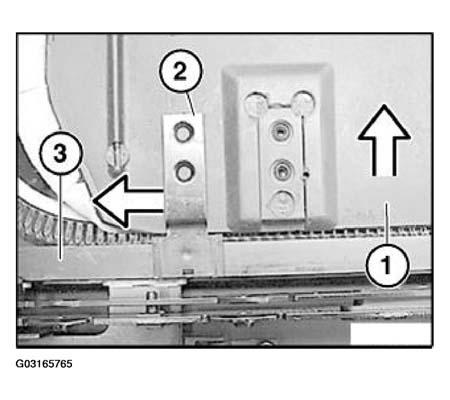

Fig 3: Removing Sliding Member From Guide Duct And Headliner

G03165765

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Rear sliding member (1) must be fitted behind driver (2).

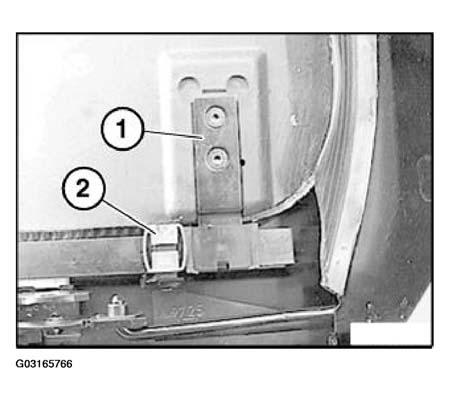

Fig 4: Installing Rear Sliding Member Must Be Fitted Behind Driver

G03165766

Courtesy of BMW OF NORTH AMERICA, INC.

Pull headliner (1) to left/upwards with sliding members (2) out of rail (3).

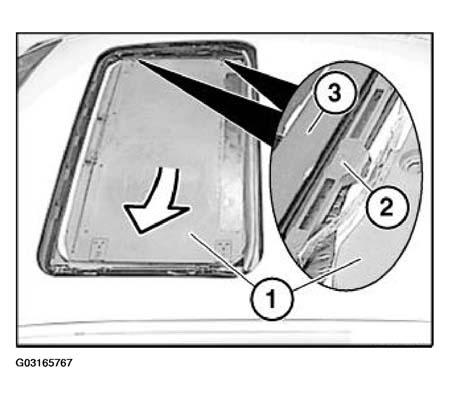

Fig 5: Pulling Headliner To Left/Upwards With Sliding Members Out Of Rail

G03165767

Courtesy of BMW OF NORTH AMERICA, INC.

Pull sliding member (1) at front/rear off springs (2) of headliner (3).

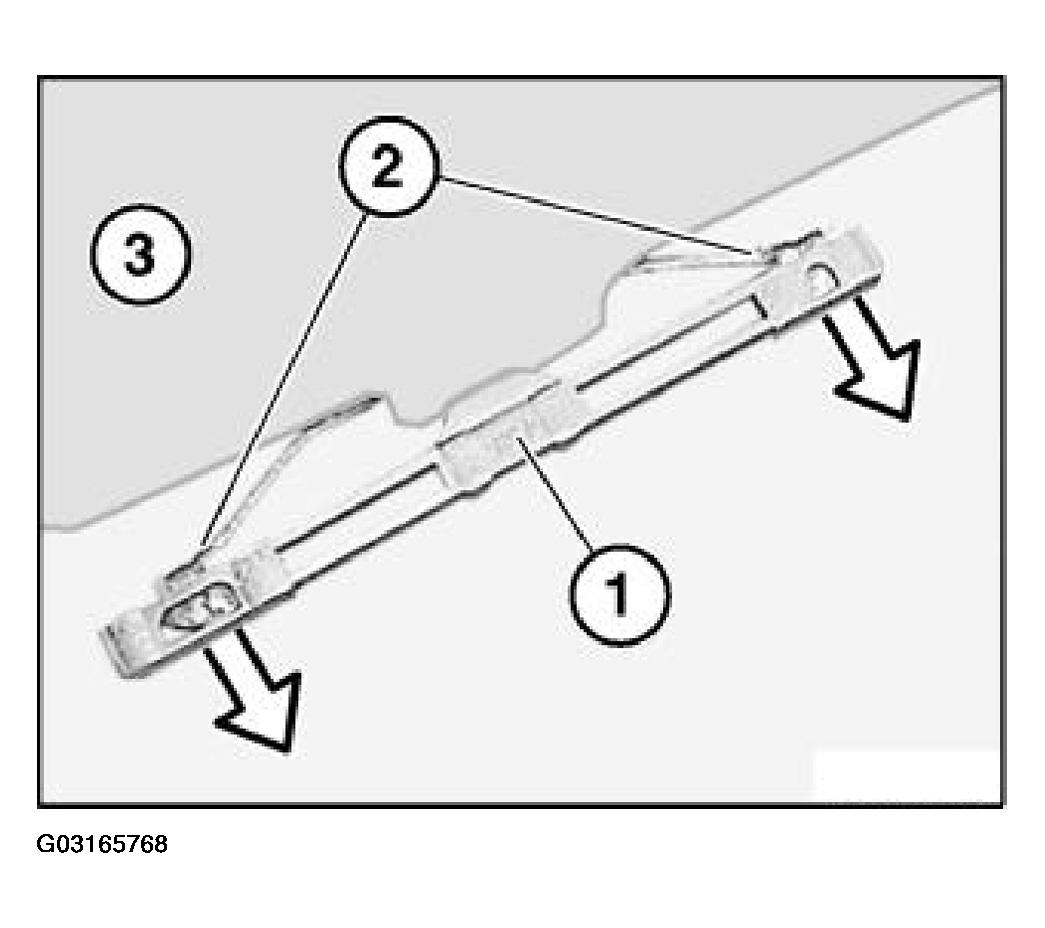

Fig 6: Pulling Sliding Member At Front/Rear Off Springs Of Headliner

G03165768

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Nubs (2) of spring (1) must snap into place in guides (4) of sliding member (3).

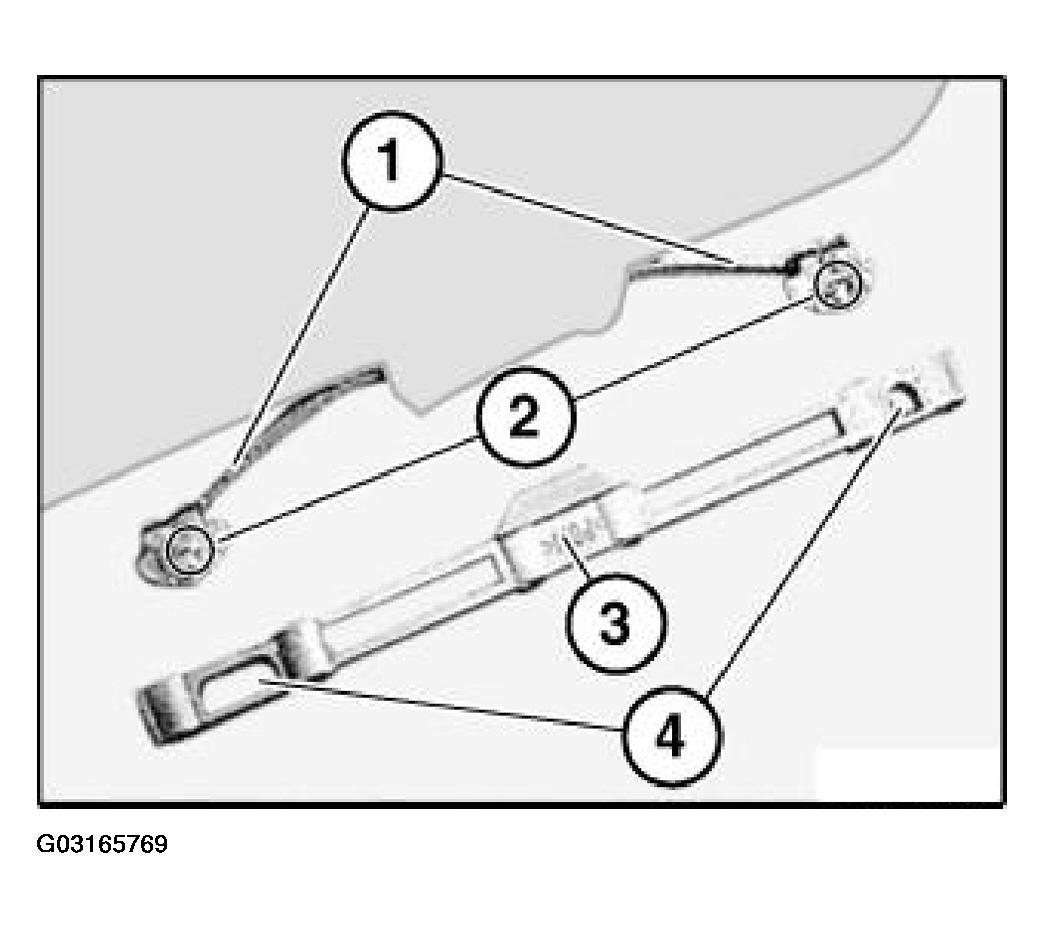

Fig 7: Identifying Nubs Of Spring Must Snap Into Place In Guides Of Sliding Member

G03165769

Courtesy of BMW OF NORTH AMERICA, INC.
