52 13 025 Removing and installing/replacing seat mechanism (on front seat normal/manual), left or right
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Remove seat pan and flexmat on front seat, refer to 52 13... REMOVING AND INSTALLING/REPLACING SEAT PAN AND FLEXMAT (NORMAL/MANUAL), LEFT OR RIGHT
Remove backrest frame on front seat, refer to 52 13 030 REMOVING AND INSTALLING / REPLACING BACK-REST FRAME ON LEFT OR RIGHT FRONT SEAT (NORMAL / MANUAL) .
Remove seatbelt tensioner, refer to 72 11 030 Removing and installing/replacing front seat belt .

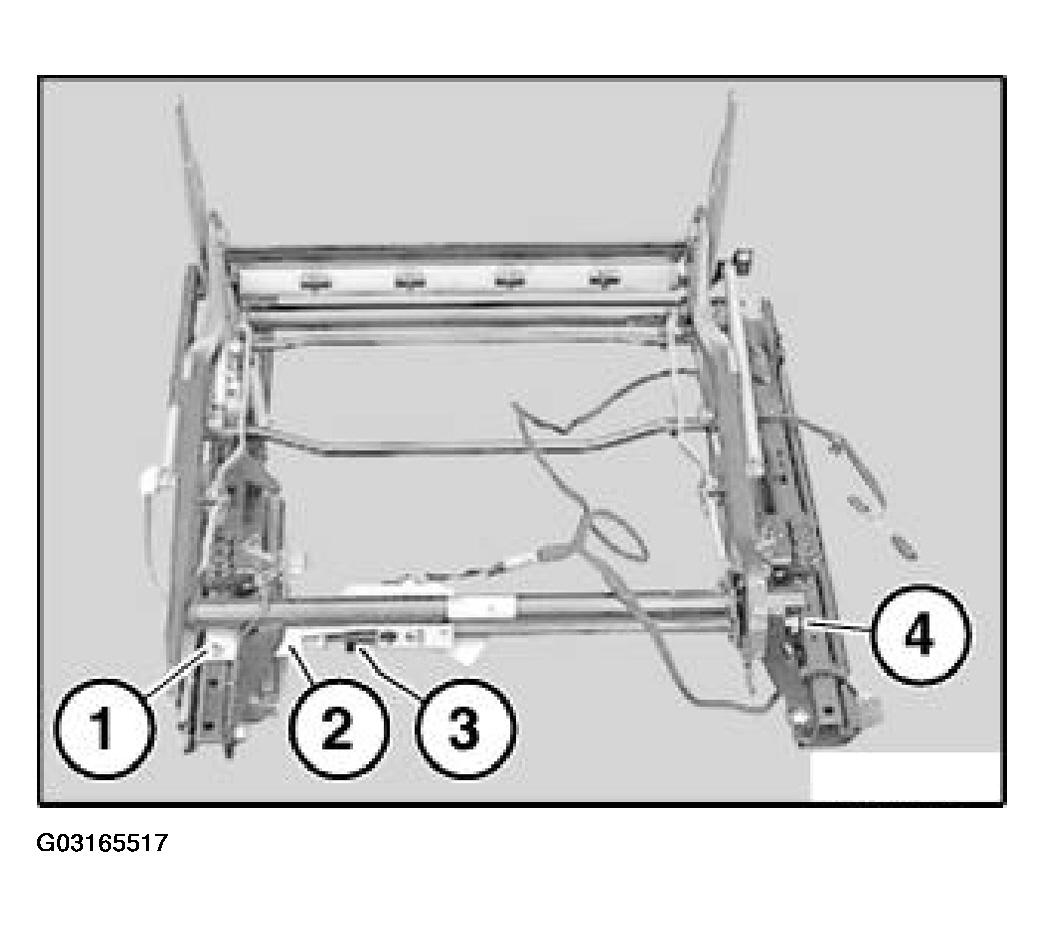

Release screw (1) and cable tie (3).
Remove retaining bracket (2) with seat wiring harness from seat mechanism (4).
