51 13 065 Removing and installing/replacing trim on left or right headlight housing (saloon/sedan, touring)
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Build date up to 09/2001:
Version with headlight cleaning system:
Remove jet nozzle of headlight cleaning system. See 61 67 040 ADJUSTING SPRAY NOZZLES FOR HEADLIGHT CLEANING SYSTEM
Unclip inner trim.

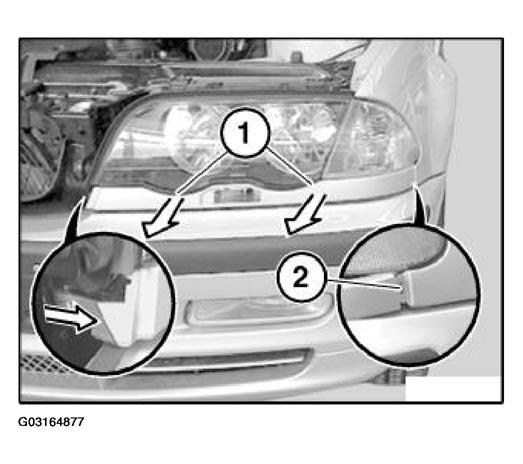

Press trim downwards out of holders (1) and feed out hook (2).
Build date from 09/2001:
Remove turn signal lamp.
Version with headlight cleaning system:
Remove jet nozzle of headlight cleaning system. See 61 67 040 ADJUSTING SPRAY NOZZLES FOR HEADLIGHT CLEANING SYSTEM

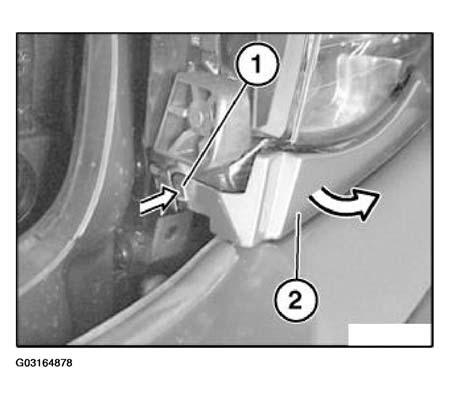

Press detent lug (1) and feed out trim (2) in direction of arrow.

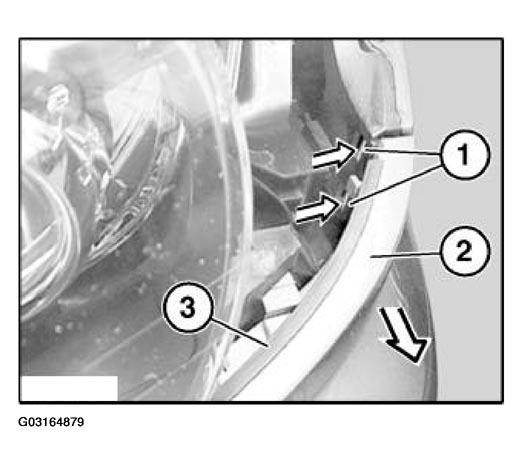

Press detent lugs (1) and remove trim (2) in direction of arrow.
Installation:
Make sure bonded seal (3) is correctly seated.
