51 43 075 Removing and installing/replacing side trim panel, footwell, on A-pillar, right

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove mucket (2) in area of footwell trim.

Unclip clips (1) towards inside.

Remove side trim panel (2) from entrance strip (3).

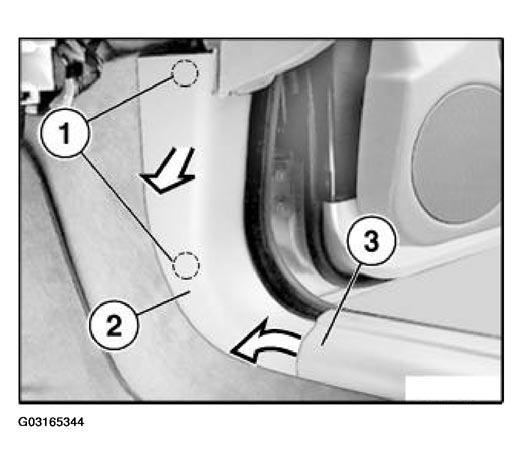

Fig 1: Removing Side Trim Panel From Entrance Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (1) in side trim panel (2).

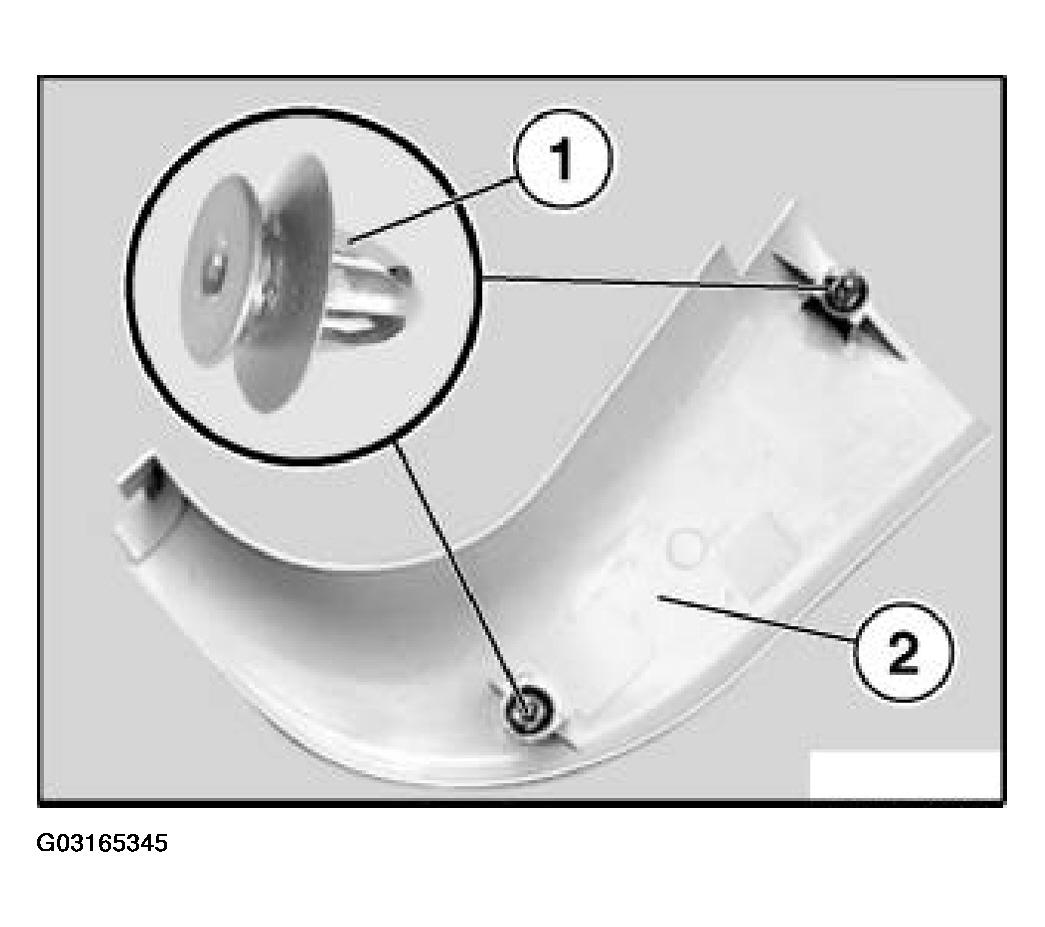

Fig 2: Installing Clips In Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
