51 43 070 Removing and installing/replacing side trim panel, footwell, on A-pillar, left

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove panel for pedals,

refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

Remove front entrance cover strip (inside),

refer to 51 47 000 REMOVING AND INSTALLING/REPLACING FRONT (INSIDE) LEFT OR RIGHT ENTRANCE COVER STRIP .

Release screw (1) and remove release lever (2).

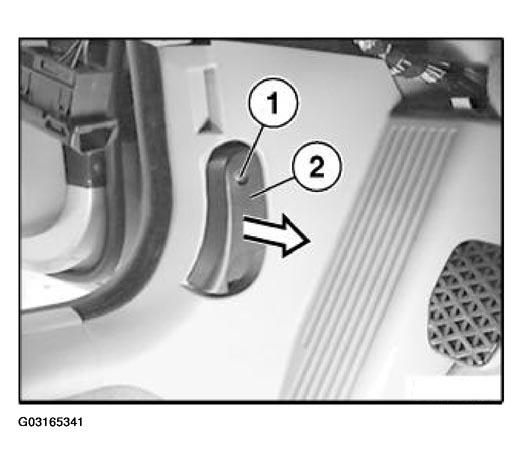

Fig 1: Releasing Screw (1) And Removing Release Lever (2)
G03165341Courtesy of BMW OF NORTH AMERICA, INC.

Remove mucket (1) in area of footwell trim.

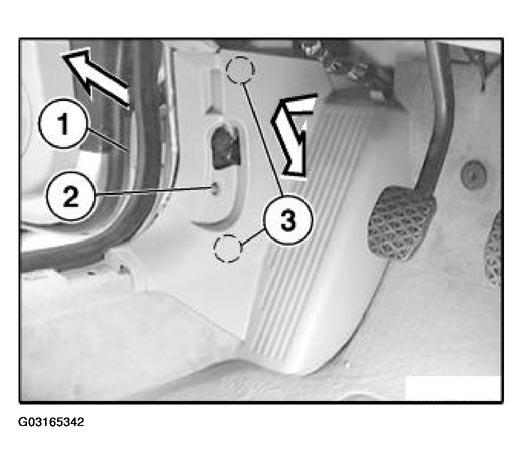

Fig 2: Removing Mucket In Area Of Footwell Trim
G03165342Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2).

Push footwell trim (3) a little to rear (guides (3) are unlocked) and detach footwell trim towards inside.

Installation:

  1. Guides (1) must not be damaged.

Replacement only:

Lift out insert (2) in footwell trim (3).

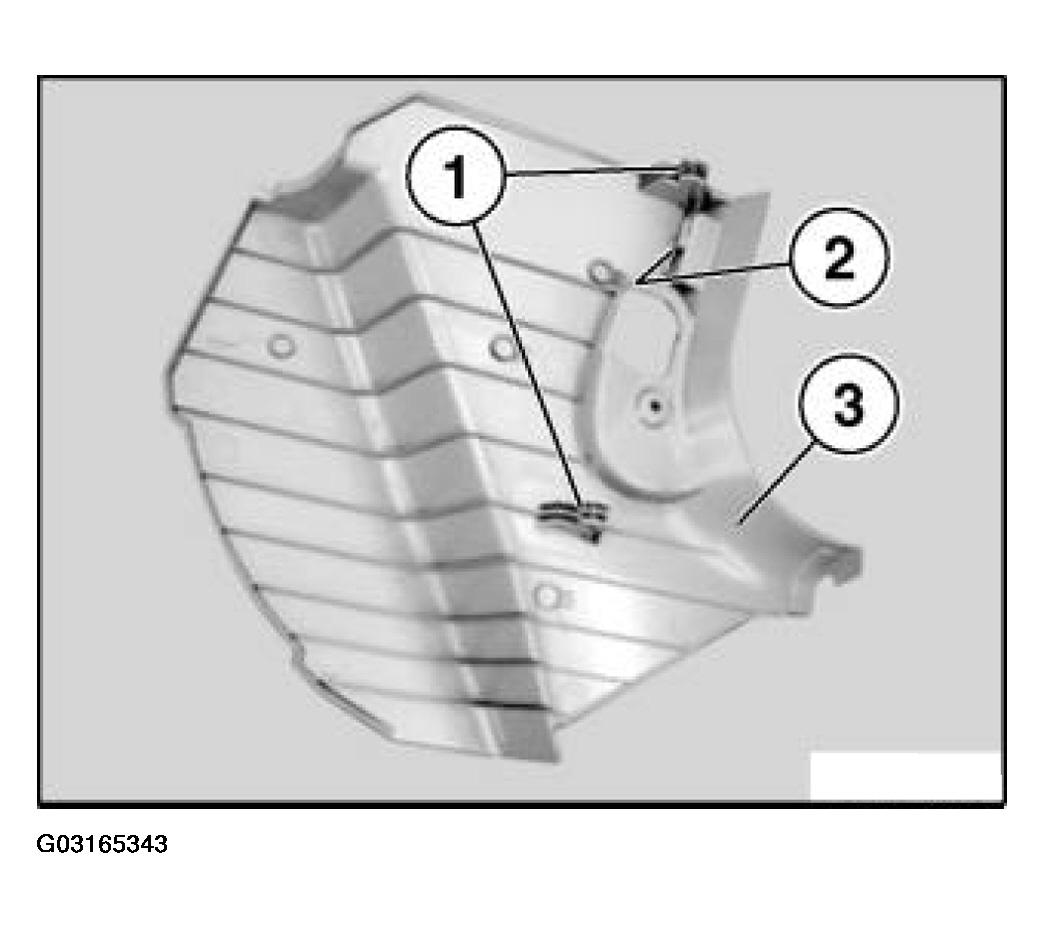

Fig 3: Lifting Out Insert In Footwell Trim
G03165343Courtesy of BMW OF NORTH AMERICA, INC.
