51 22 280 Removing and installing/replacing door stop on rear left or right door
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Raise the door window.
Disconnect battery negative lead.
NOTE:
To release or partially detach sound insulation, follow procedure in "Removing and installing/replacing sound insulation on front left or right door", refer to 51 48... REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN FRONT DOOR, LEFT OR RIGHT .
Partially detach sound insulation at front and secure with adhesive tape (1).

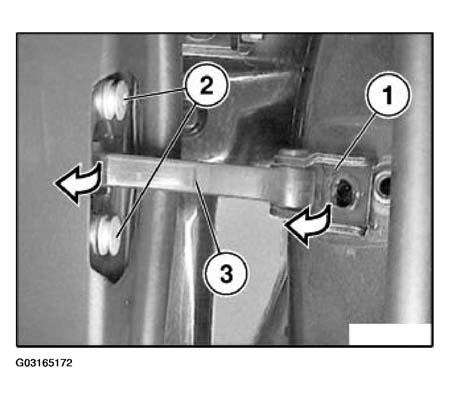

Unscrew bolt (1).
Remove seal (2) towards rear and detach from door brake (3).
NOTE:

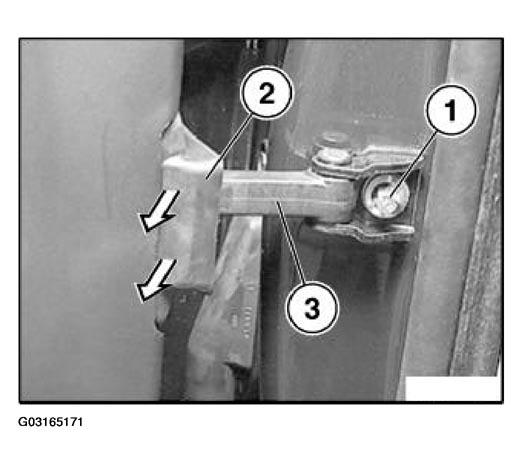

For removal, fold back screw plate (1).
Release screws (2) and feed out door brake (3) to inner door panel.
Installation:
- If necessary, stick butylene tape between door stop and inner door plate.

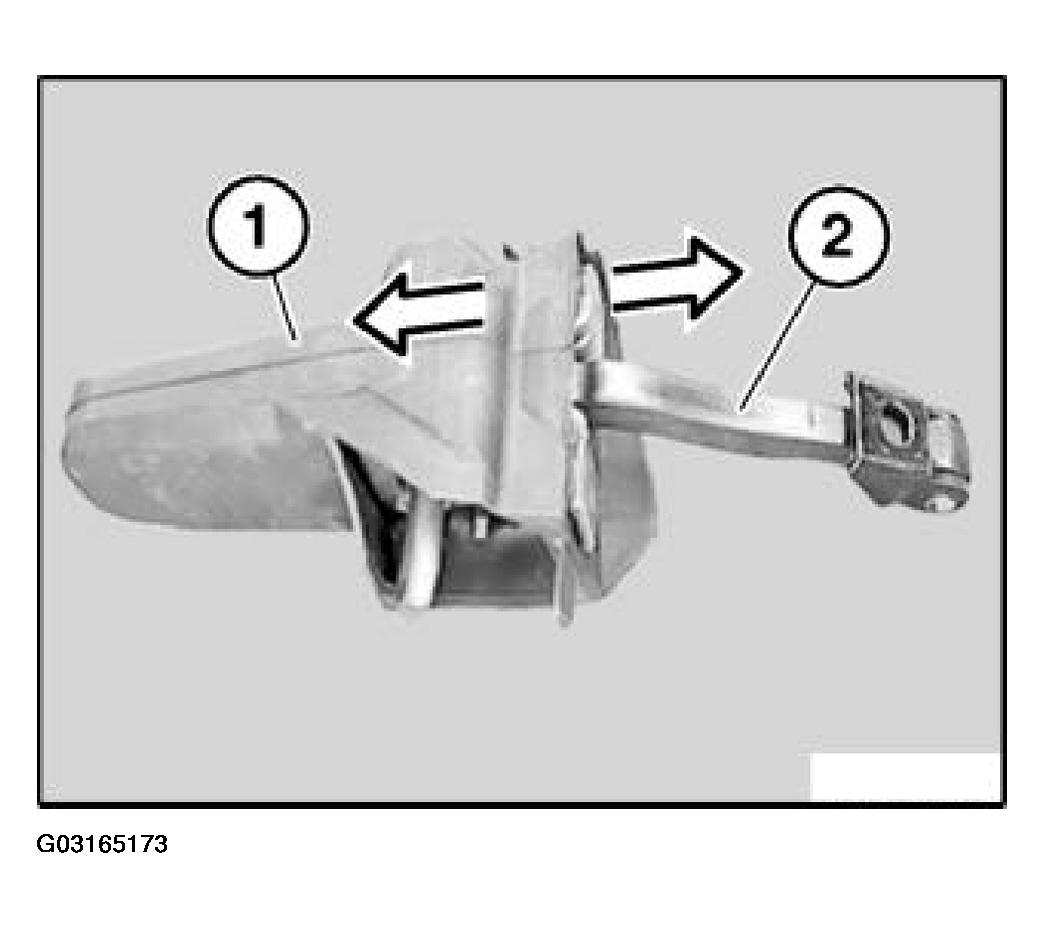

Pull door stop (2) out of rubber sleeve (1).
Installation:

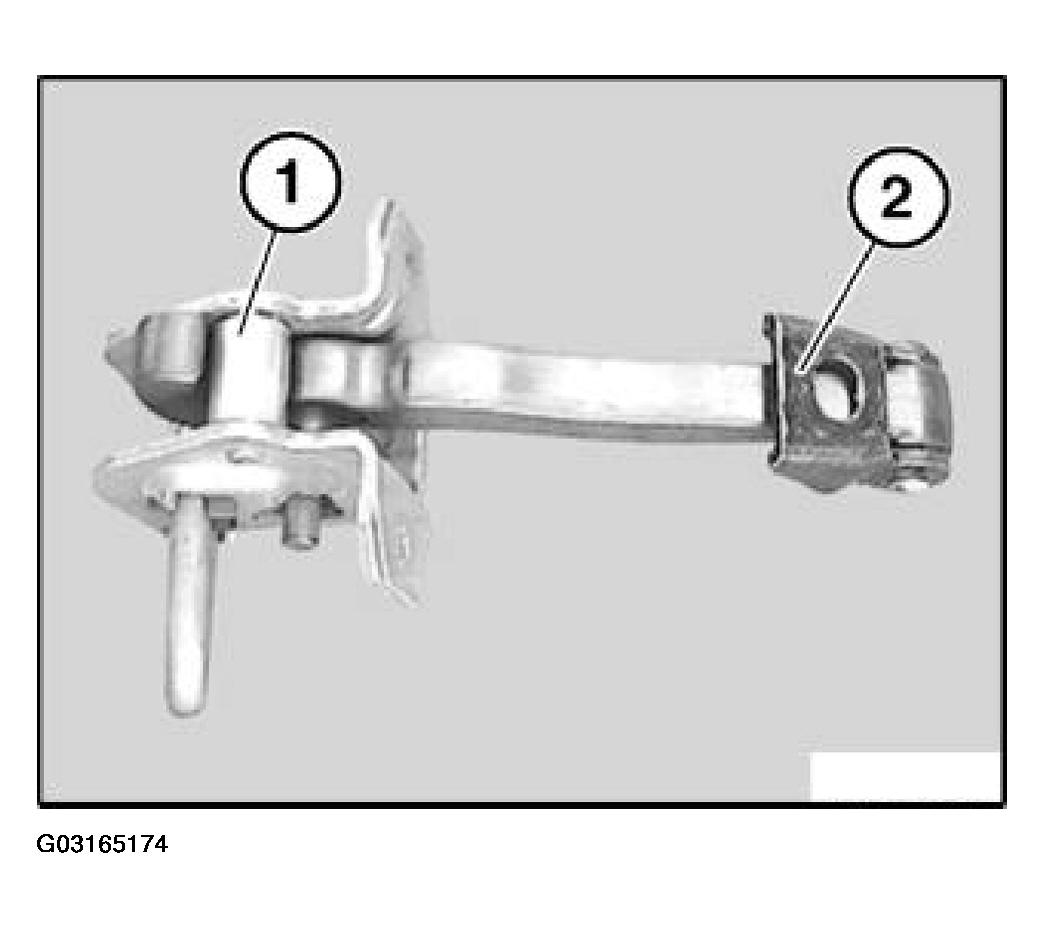

- To install door brake (1), fold back screw plate (2) as shown in illustration.
