51 22 200 Removing and installing/replacing outside handle and lock actuator on left or right rear door (up to 09/00)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove door lock on rear door. See 51 22 090 Removing and installing/replacing door lock in left or right rear door (from 09/00)

Remove outside handle on rear door. See 51 22 170 Removing and installing/replacing outside handle on left or right rear door (from 09/00)

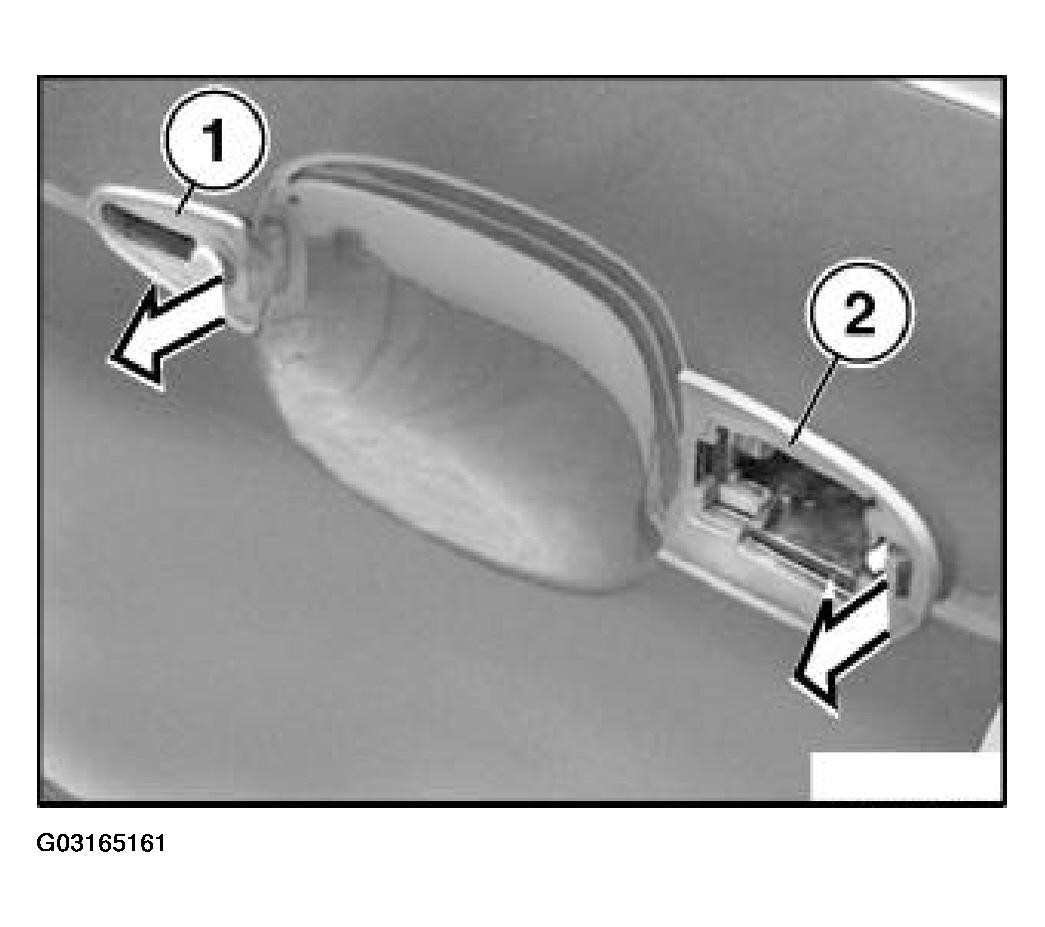

Remove seals (1) and (2) for outside handle.

Fig 1: Removing Seals For Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

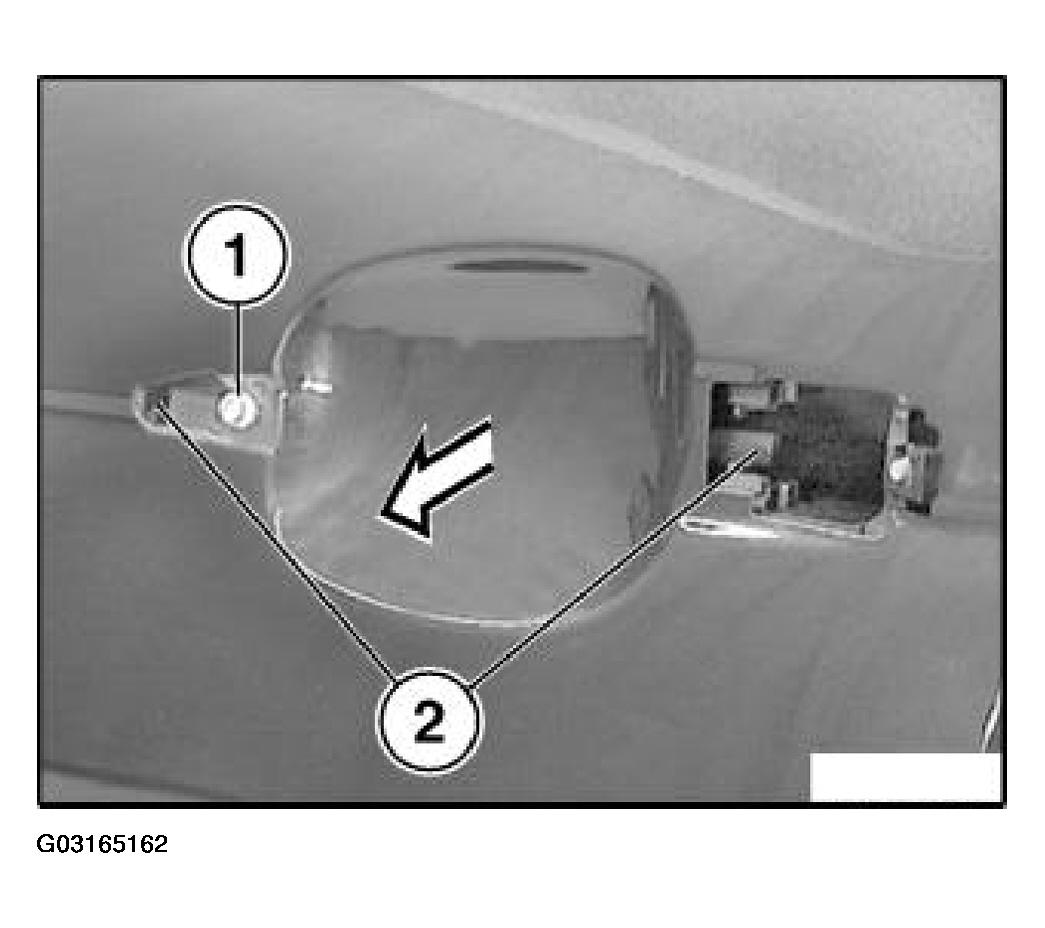

Loosen bolt (1).

Lever out lock actuator (2) forwards/downwards out of window guide and remove to inner door plate.

Fig 2: Levering Out Lock Actuator (2) Forwards/Downwards Out Of Window Guide

Courtesy of BMW OF NORTH AMERICA, INC.

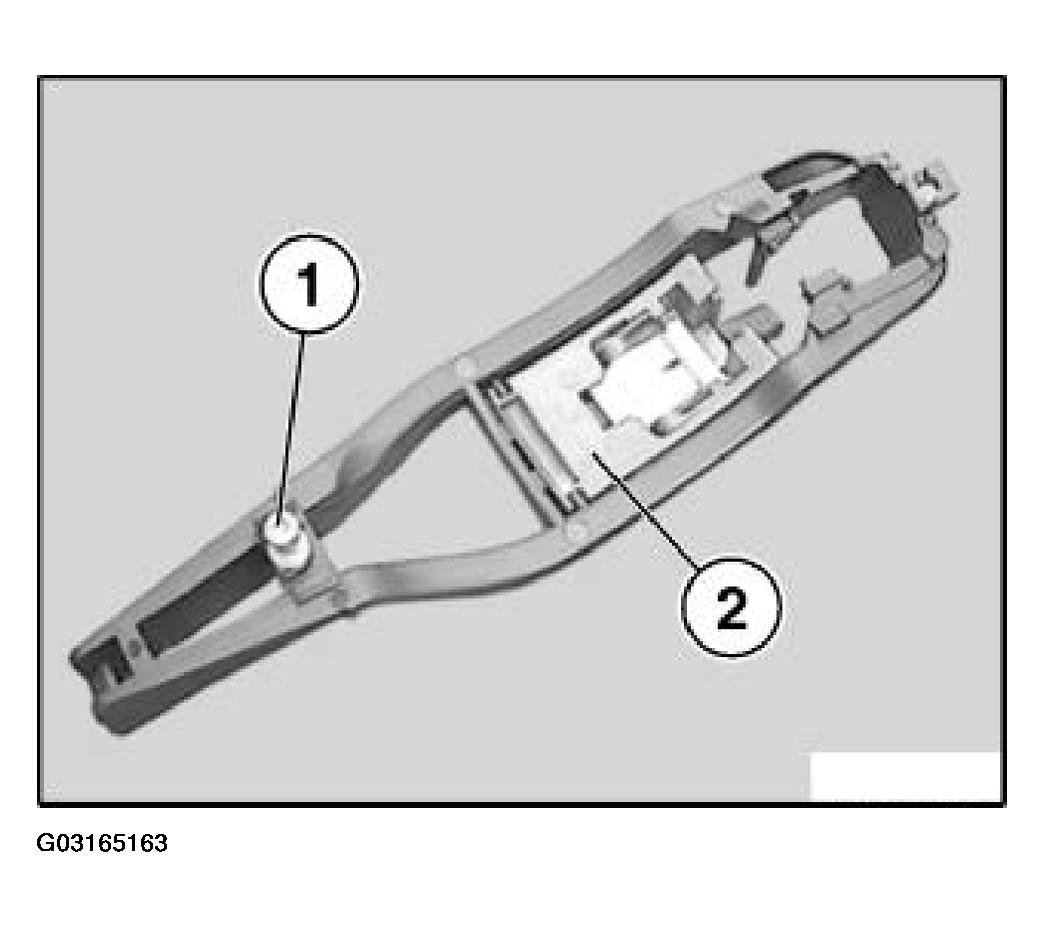

If necessary, replace screw (1) on lock actuator (2).

Fig 3: Removing Lock Actuator Screw

Courtesy of BMW OF NORTH AMERICA, INC.
