51 22 200 Removing and installing/replacing outside handle and lock actuator on left or right rear door (from 09/00)

Remove acoustic insulation. See 51 48... Removing and installing/replacing sound insulation in rear door, left or right

Remove outside handle on rear door. See 51 22 170 Removing and installing/replacing outside handle on left or right rear door (up to 09/00)

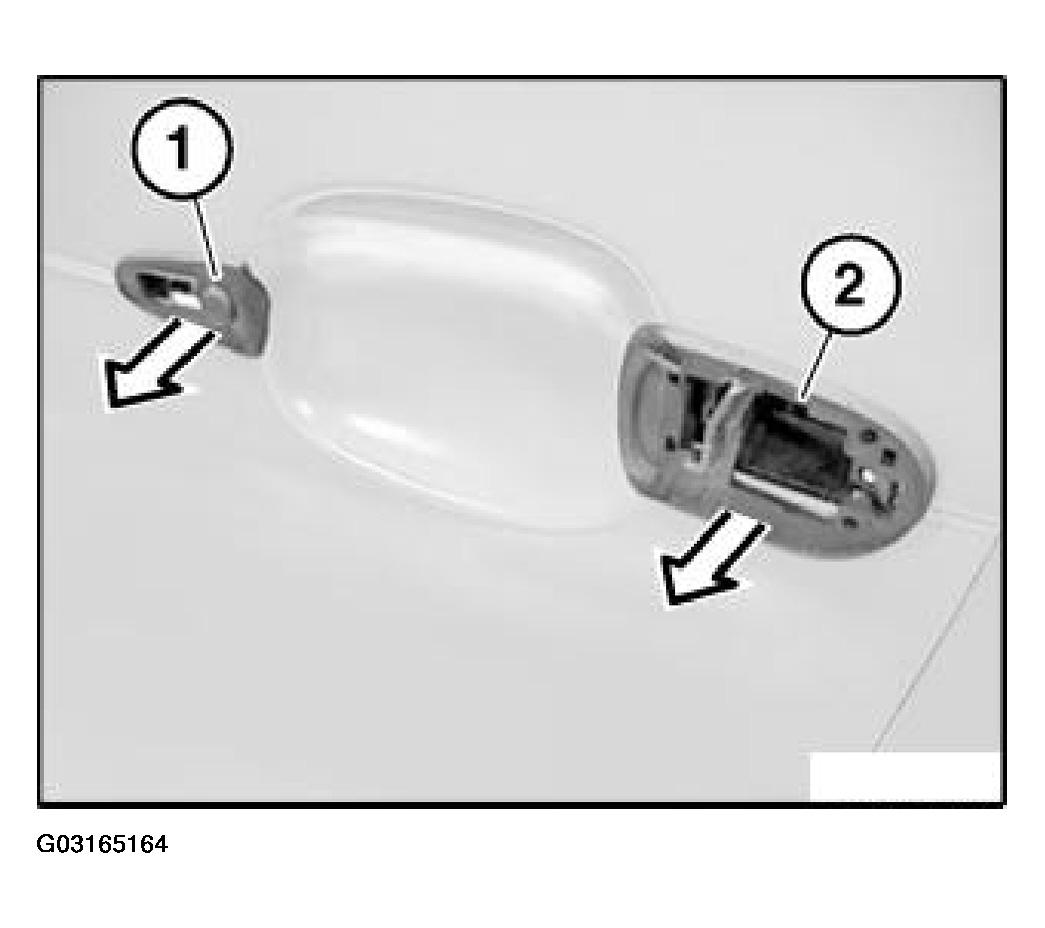

Remove seals (1) and (2) for outside handle.

Fig 1: Removing Seals For Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

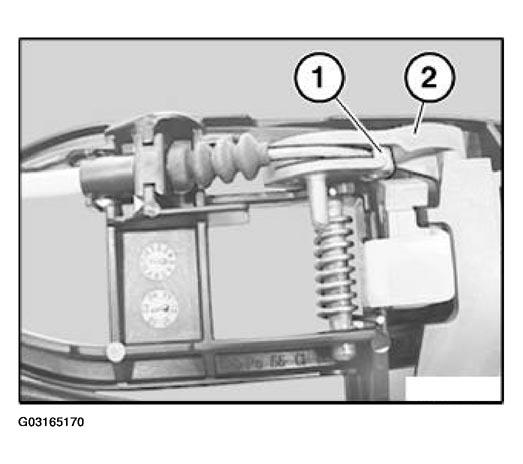

Lever out Bowden cable (1) from holder (2) with screwdriver.

Unhook Bowden cable nipple (3) from lever (4).

Fig 2: Unhooking Bowden Cable Nipple From Lever

Courtesy of BMW OF NORTH AMERICA, INC.

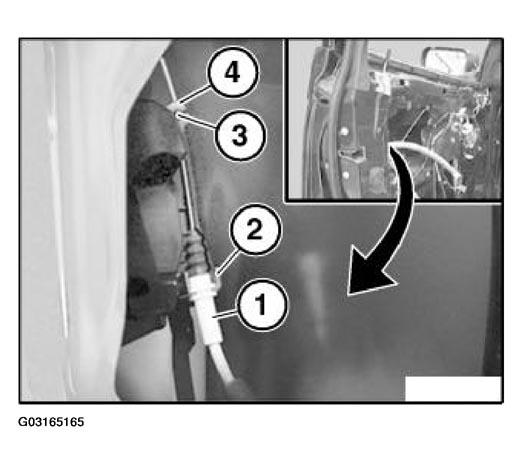

Feed Bowden cable (1) out of guide (2).

Fig 3: Feeding Bowden Cable Out Of Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

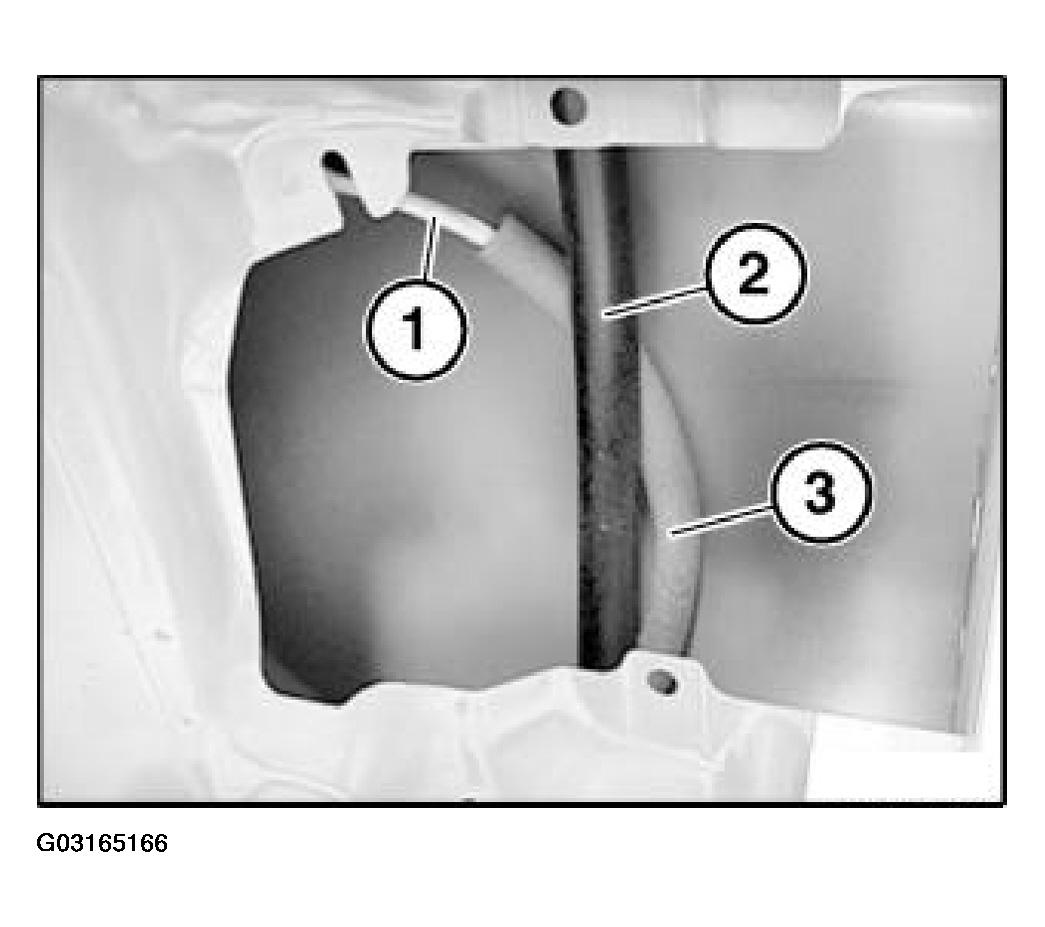

Foam (3) must be in area of guide (2).

Loosen bolt (1).

Lever out lock actuator (2) towards front and remove to inner door plate.

Fig 4: Levering Out Lock Actuator Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

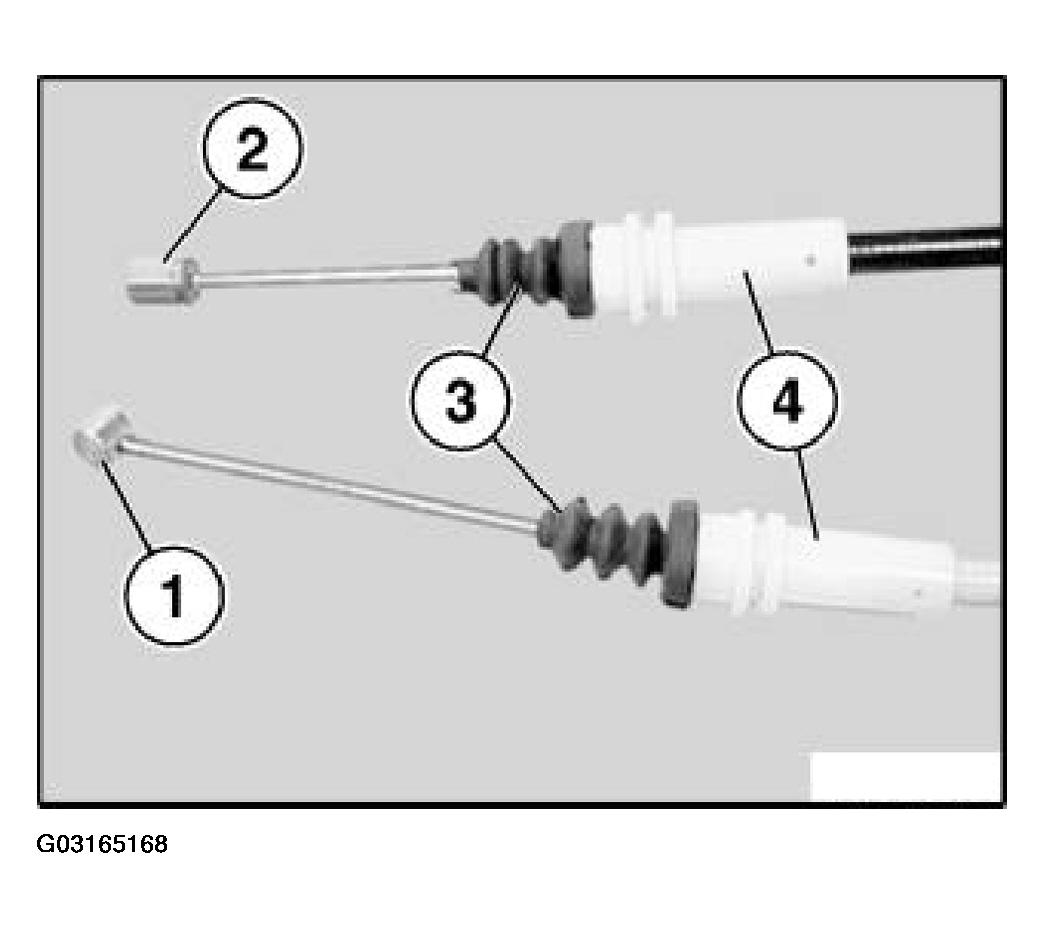

Grommet (3) must be pushed onto end piece (4).

Fig 5: Installing Grommet Onto End Piece

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

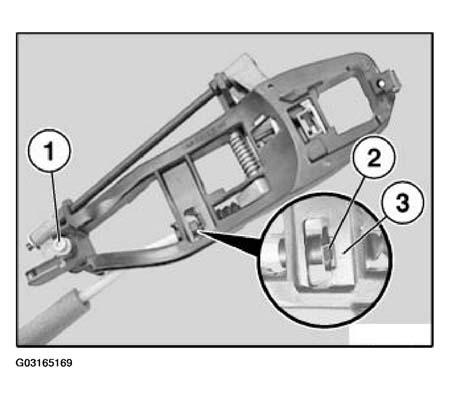

If necessary, replace screw (1) on lock actuator (3).

Bowden cable (2) must be correctly engaged with lock actuator (3).

Fig 6: Ensuring Bowden Cable Correctly Engaged With Lock Actuator

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

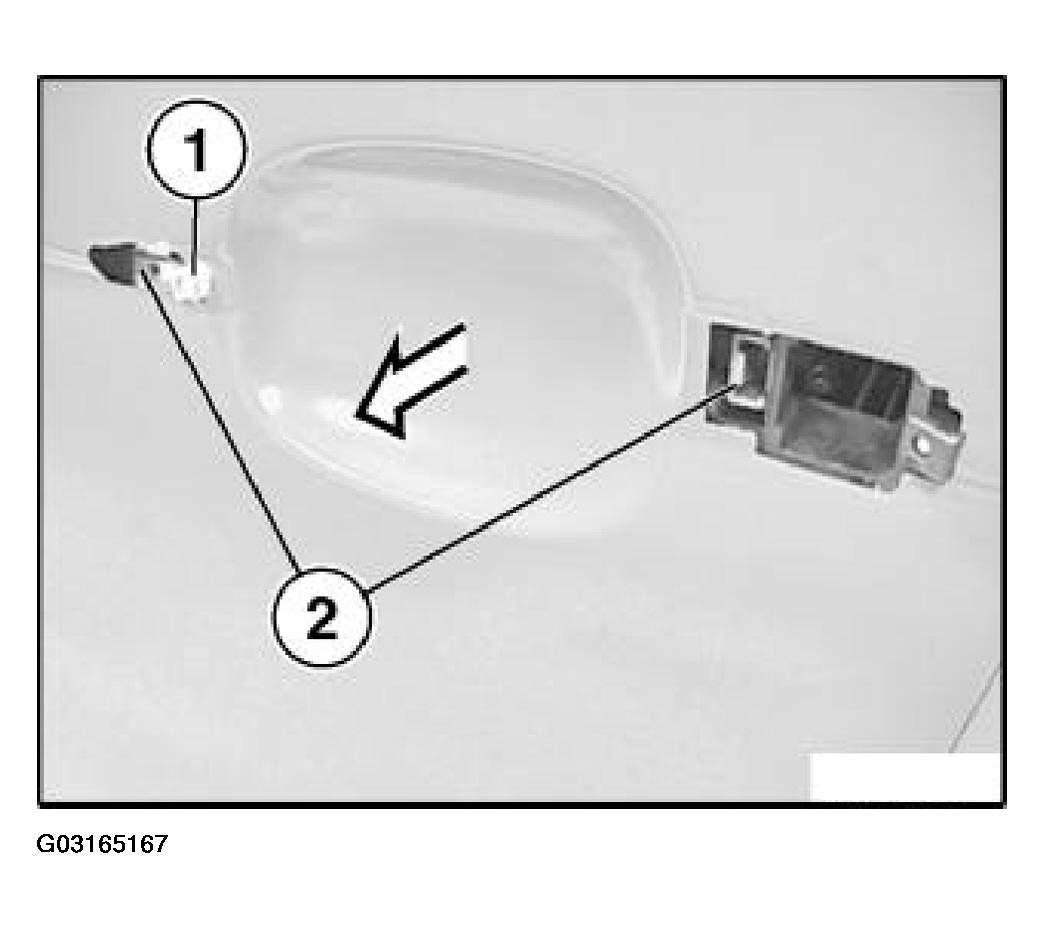

Bowden cable nipple (1) must be correctly fitted in lock actuator (2) and must not be removed.

Fig 7: Ensuring Bowden Cable Nipple Correctly Fitted In Lock Actuator

Courtesy of BMW OF NORTH AMERICA, INC.
